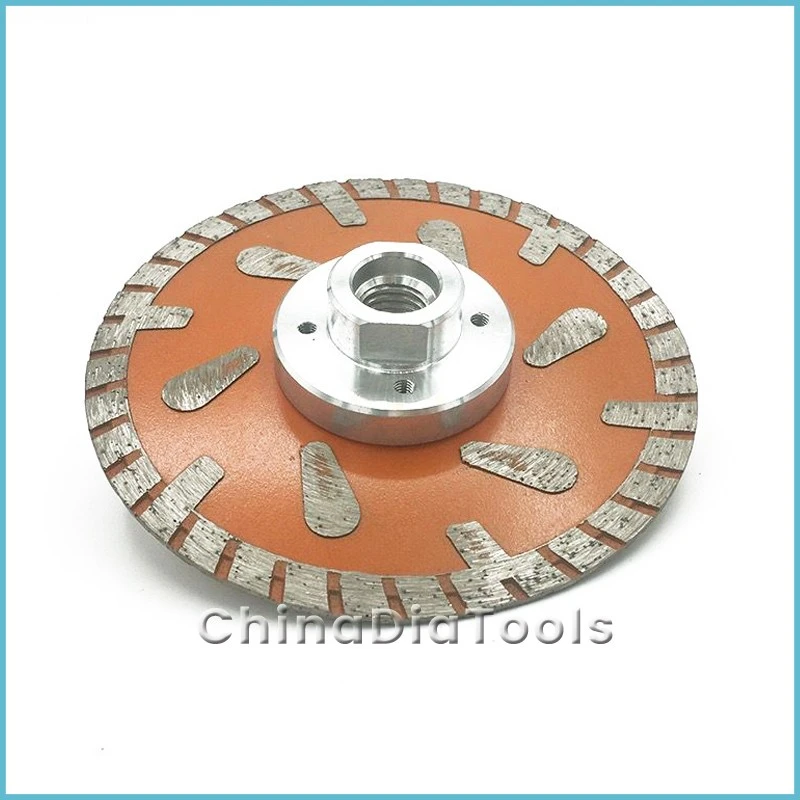

Diamond Blade With Flange
diamond blade with flange Description
The flange plate is a pair of metal plates installed on both sides of the saw blade to clamp and fix the saw blade on the main shaft of the cutting equipment. The diamond saw blade with flange can ensure better concentricity of the saw blade, prevent the saw blade from falling off, reduce stress concentration, reduce vibration in the cutting process, and ensure cutting flatness. At the same time, the flange can also improve the torque transmission efficiency of the machine
different diamond blade with flange
The main effect of flange on diamond saw blade
1 Precise fixation and positioning (the most critical role)
- Ensure concentricity: the inner hole of the flange plate is accurately matched with the main shaft of the equipment, and the outer surface is matched with the central hole of the saw blade. This pair of flanges ensures that the saw blade is installed in the absolute center position, preventing radial runout (swing) of the saw blade when rotating at high speed. Concentricity is the primary factor to ensure the cutting accuracy and cutting quality.
- Provide sufficient clamping force: tightly clamp the saw blade with two flange plates through bolts or nuts to form a whole. This prevents slippage between the saw blade and the spindle during starting, stopping or cutting, and ensures 100% power transmission.
2 Ensuring safety (the most important role)
- Prevent the saw blade from falling off: under the high-speed rotation of thousands or even tens of thousands of revolutions per minute, the huge centrifugal force is enough to throw out any unfixed parts. The strong clamping of the flange is the first and most important safety barrier to prevent the saw blade from flying out of the spindle.
- Reduce stress concentration: if there is no flange, the force of tightening the nut will directly act on a small area in the center of the saw blade, resulting in stress concentration, which is very easy to cause the center of the saw blade to crack when rotating at high speed. The flange plate evenly distributes the clamping force to a large area in the center of the saw blade, greatly reducing the risk of fracture.
3 Improve cutting performance and stability
- Reduce vibration: the stable clamping can effectively suppress the vibration of the saw blade when cutting. Vibration will not only affect the quality of the cut (edge chipping, cutting lines), but also accelerate the wear of the diamond cutter head, and even lead to the early damage of the saw blade.
- Ensure cutting straightness: stable clamping and accurate positioning ensure that the saw blade will not swing during the cutting process, so as to cut a straight and smooth cut.
4 Transmission torque
- The rotating power (torque) of the equipment spindle is transmitted through the friction between the flange and the central hole of the saw blade. The clamping area and clamping force are large enough to ensure that the power can be transmitted efficiently without slipping even when cutting under high load.
We also supply other diamond blade
diamond blade with wide diamond segment
Enhanced segment diamond blade for stone
segmented diamond blade for angle ginder
continuous rim diamond blade
Enhanced segment protection structure diamond blade
Turbo angle ginder cutting diamond blade
Cutting Grinding double use diamond blade
X turbo diamond blade for angle grinder
* Our company produces all the above products, and some common models have a small inventory that can be shipped at any time.
* The delivery cycle for unconventional sizes is approximately 1-2 weeks;
* The above products are all integrated high-temperature sintered and pressed diamond saw blades, and some products have laser welding products;
* For more models and discounted prices, please contact the online contact information at the bottom and right of the website;
* For more types of diamond saw blades, please consult our customer service.
* The diamond saw blades of the above types can be customized as diamond saw blades with flange.
* Factory direct sale diamond saw blade, welcome to consult.
