What is Brazed Diamond Tools?

Brazed diamond tools are superhard material tools that utilize brazing technology to securely bond diamond particles to a metal substrate. This type of tool combines the high hardness of diamonds with the toughness of the metal substrate, making it widely used in various fields such as cutting, grinding, drilling, and polishing, particularly suitable for processing hard materials.

The brazing technique involves coating the diamond surface with certain transition elements (such as Ti, Cr, W, etc.), which react with the diamond to form a carbide layer. This layer enables a strong chemical and metallurgical bond between the diamond, the brazing alloy material (the binder), and the substrate. Compared to traditional electroplating or sintering methods, this bonding method offers higher strength and better wear resistance, significantly improving the tool's service life and efficiency.

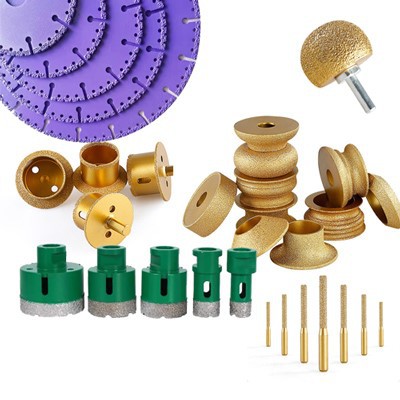

Types of brazed diamond tools include, but are not limited to, brazed diamond core drills, cutting blades/saws, grinding discs, grinding heads, profiling wheels, grinding wheels, and milling cutters. The performance of these tools largely depends on the brazing alloy used, which should have an appropriate melting point and good wettability with diamonds to ensure the quality of the brazing and the performance of the tool.

The manufacturing process of brazed diamond tools involves multiple steps, including the classification and treatment of diamonds, understanding the principles of brazing, principles of uniform grit distribution, and equipment maintenance. Additionally, the correct use of brazed diamond tools is also crucial, including selecting appropriate cutting quantities and correctly choosing the type and brand of the blade.

In summary, brazed diamond tools play an important role in industrial production due to their efficiency and durability. With technological advancements, their range of applications and market acceptance continue to expand.

vacuumbrazeddiamondtoolindex





First 1234567 Last
What are the advantages of using brazed diamond tools over traditional cutting tools?

Brazed diamond tools offer several advantages over traditional cutting tools, which can be attributed to their unique properties and the brazing process used to manufacture them:

  1. High Hardness and Wear Resistance: Diamond is the hardest known material, which means brazed diamond tools can cut through various hard materials effectively and have a longer service life compared to traditional tools that may wear down more quickly. This is particularly beneficial when cutting hard materials such as stone, ceramics, and some metals.
  2. Efficient Material Removal: Due to the hardness of diamond, brazed diamond tools can achieve higher cutting speeds and more efficient material removal rates than conventional tools. This can lead to faster production times and increased productivity.
  3. Precision and Accuracy: The fine grit of diamond tools allows for more precise and accurate cuts, which is crucial for intricate work where high tolerances are required.
  4. Longer Tool Life: The durability of diamond means that brazed diamond tools can last significantly longer than traditional tools, reducing the need for frequent tool changes and reducing downtime.
  5. Less Heat Generation: Diamond tools, when used properly, can generate less heat than traditional tools when cutting certain materials, which can help prevent thermal damage to the workpiece.
  6. Versatility: Brazed diamond tools can be used for a wide range of applications, from cutting to grinding and polishing, due to the versatility of diamond as a cutting material.
  7. Cost-Effective in the Long Run: Although the initial cost of brazed diamond tools may be higher, their longevity and efficiency can make them a cost-effective choice over time.
  8. Less Downtime: Due to their longer life and ability to maintain sharpness, brazed diamond tools reduce downtime associated with changing or sharpening tools.
  9. Improved Safety: The use of brazed diamond tools can lead to safer working conditions as they can cut through materials that might be too hard or dangerous to cut with traditional tools.
  10. Eco-Friendly: The brazing process used to manufacture these tools can be more environmentally friendly as it does not produce waste gas and water, contributing to green production.

It's important to note that while brazed diamond tools have these advantages, they also have specific limitations and are not suitable for all applications. For instance, they should not be used for cutting materials that can cause the diamond to graphitize (turn into graphite) at high temperatures, such as certain metals at very high temperatures. Additionally, the brazing process requires careful control to ensure the integrity and performance of the diamond tools.

How to make vacuum brazed diamond tools?

The process of making vacuum brazed diamond tools involves several key steps that ensure the diamonds are securely bonded to the tool substrate.

Here's a general outline of the process:

  1. Diamond Selection and Preparation: Choose the appropriate diamond grit size and shape for the intended application. The diamonds are then cleaned to remove any contaminants.
  2. Substrate Preparation: The metal substrate, often made of a material like steel, is prepared by cleaning and sometimes coating it with a layer of brazing alloy or a chemical that enhances the bonding process.
  3. Layout and Fixturing: The diamonds are laid out on the substrate in the desired pattern. A fixture or mold may be used to hold the diamonds in place during the brazing process.
  4. Vacuum Brazing Furnace: The substrate with diamonds is placed in a vacuum brazing furnace. The vacuum environment is crucial as it helps to prevent oxidation and ensures a clean, strong bond.
  5. Brazing Alloy Application: A brazing alloy, which is a filler metal with a melting point lower than that of the substrate and diamonds, is applied. This can be done through various methods, such as screen printing, electroplating, or mechanical clamping.
  6. Heat Treatment: The furnace is heated to a temperature that is high enough to melt the brazing alloy but not so high as to damage the diamonds or cause them to graphitize. The temperature is carefully controlled to ensure even melting of the brazing alloy.
  7. Cooling: After the brazing alloy has melted and flowed to bond the diamonds to the substrate, the furnace is gradually cooled. This step is critical to prevent thermal shock and to allow for a solid, stable bond to form.
  8. Inspection and Cleaning: Once cooled, the brazed tool is removed from the furnace and inspected for quality. Any excess brazing alloy or residue is cleaned off.
  9. Post-Brazing Operations: Additional steps may be taken, such as grinding or lapping, to ensure the tool has the correct geometry and to remove any high spots or unevenness.
  10. Quality Control: The finished vacuum brazed diamond tool undergoes rigorous testing to ensure it meets the required specifications for performance and durability.

The success of vacuum brazed diamond tools relies on the careful selection of materials, precise control of the brazing process, and thorough post-brazing treatment. Each step is critical to ensure the diamonds are firmly attached and the tool will perform effectively and last for a long time under operational conditions.

Vacuum-brazed diamond tools have several advantages over diamond tools with other types of binders





  1. High Bonding Strength: Vacuum brazing technology can achieve a strong chemical and metallurgical bond between the diamond, the brazing alloy material, and the metal substrate, resulting in a high bonding strength.
  2. Increased Tool Life: The improved bonding strength significantly enhances the durability of the tool, with only a small amount of diamond loss observed after use, which greatly extends the tool's service life.
  3. Allowing Greater Protrusion: The brazing technique allows for a larger maximum protrusion of the diamond, meaning a higher utilization rate of the diamond and better cutting efficiency.
  4. Reduced Diamond Consumption: Compared to traditional techniques, the diamond consumption per unit volume of workpiece material can be reduced by more than half without increasing or even reducing the tool's power consumption.
  5. Environmental-friendly Manufacturing: The vacuum brazing process is carried out under vacuum conditions, avoiding the generation of exhaust gases and wastewater, making it an environmentally friendly production method.
  6. Excellent Cutting Performance: Due to the larger space for chip removal and the larger free cutting surface of the diamond grains, the brazing diamond tools exhibit good grinding performance and facilitate easy removal of chips.
  7. Strong Adaptability: Vacuum-brazed diamond tools can be used for dry cutting and are not affected by welding, making them suitable for cutting a variety of hard materials.
  8. High-temperature Stability: The selection of brazing materials and processes ensures the stability of the diamond, reducing the erosion of the brazing material on the diamond, allowing the tool to maintain performance at higher temperatures.
  9. Mature Technology: Although challenges remain, such as the wettability and bonding strength of the brazing material to the diamond and substrate, as well as the treatment of welding residual stress, key technologies are continuously maturing and being optimized.
  10. Efficient Grinding Processing: Vacuum-brazed diamond tools are suitable for efficient grinding processing. Tests have shown that diamond grains undergo normal wear, indicating that the diamonds have a high holding strength.

These advantages make vacuum-brazed diamond tools the preferred choice in many industrial applications, especially in processing environments that require high precision and efficiency.
