Reinforced Concrete Ring Saw Blade
Most diamond blades can handle plain concrete. But reinforced concrete is a different animal-the moment your blade hits a #8 rebar or a mesh layer, a standard blade starts glazing, chattering, or shedding segments. That's why we developed this reinforced concrete ring saw blade with a bond matrix specifically formulated for mixed-material cutting.

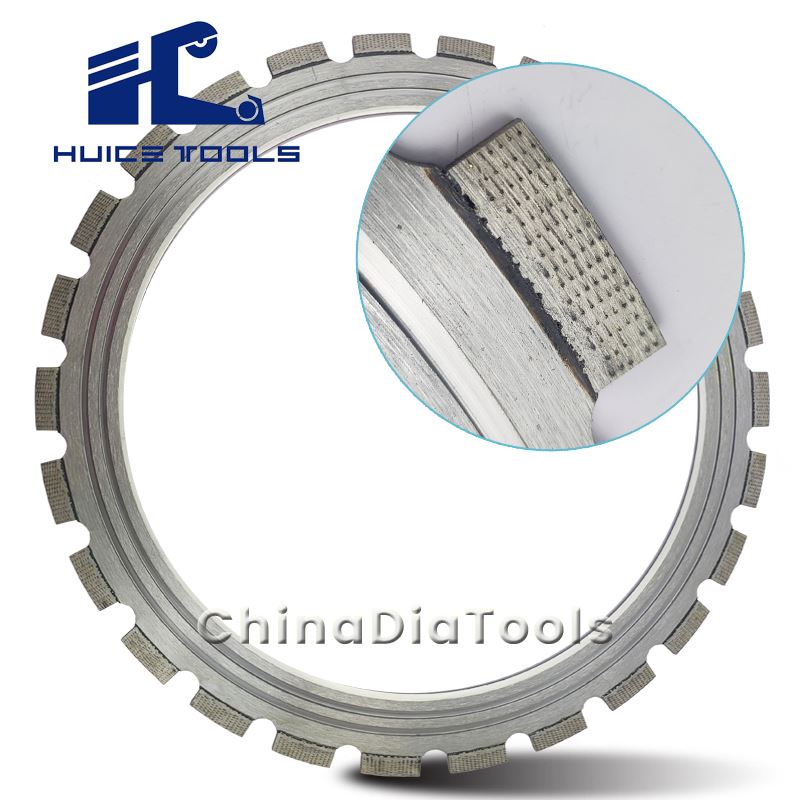

(Reinforced ring saw blade with arix diamond segment)
The secret is in the segment. We use a harder metal bond than our standard concrete blades, which resists the rapid erosion that happens when steel reinforcement meets diamond grit. At the same time, the ARIX-ordered array layout ensures that diamond particles are evenly exposed, so the blade doesn't "skate" across rebar or bog down in dense aggregate. You get a consistent bite through concrete, a clean grind through steel, and back to concrete without changing tools.
(Application of diamond ring saw blade)
We've tested this laser welded ring saw blade for rebar concrete on job sites across the Middle East and Europe-places where concrete is often poured to 40 MPa or higher with heavy steel reinforcement. The feedback was consistent: the blade holds its depth rating even after hitting multiple rebar layers, and the core stays flat instead of cupping under side load.
The 14-inch version gives you approximately 270 mm of cutting depth-enough for most commercial walls, bridge parapets, and foundation openings in a single pass. Step up to the 17-inch deep cut reinforced concrete ring saw blade, and you're looking at 325 mm depth, which covers the majority of industrial and civil infrastructure work without switching to a wire saw.
Our Advantages & Key Features
Bond Formula Tested on Real Rebar We didn't just tweak our standard concrete bond and call it "rebar-ready." This matrix was developed by cutting through actual reinforced concrete samples in our lab, measuring segment wear rates across concrete-to-steel transitions. The result is a bond that doesn't soften when it hits steel.
ARIX Segment Layout - Mature Since 2013 Our ordered-array diamond placement isn't new tech for us-it's old hat. We've been refining it for over a decade, which means the segment geometry you get today has already been through three generations of field feedback.
Double-Pressed Segment Density Higher density means the bond erodes slower when cutting through steel reinforcement. Slower erosion = longer exposure of diamond grit = more linear meters through reinforced concrete before the blade needs dressing or replacement.
In-House Raw Material QC Every batch of synthetic diamond powder is tested for particle strength and thermal stability before it enters production. When you're cutting reinforced concrete, the heat spike at rebar contact is real. Weak diamonds fracture under that thermal shock. We don't let weak diamonds into our mix.
Quanzhou Manufacturing, Global Standards Located in China's diamond tool heartland, we source premium steel cores and cobalt powders within a 50 km radius. Short supply chain = fresher materials = better welds and more consistent cores.
Why Buy From HuiceTools?
Because reinforced concrete doesn't forgive cheap tools. When your blade fails halfway through a 300 mm wall cut, you're not just losing a blade-you're losing a day's rental on the ring saw, crew overtime, and the trust of your client.
Here's what you get with us:
(Diamond ring Saw blade production site)
Predictable Rebar Performance: We tell you upfront that this blade is formulated for steel reinforcement. No surprises when you hit the first layer of mesh.
Depth You Can Trust: Our 270 mm and 325 mm depth ratings are measured in reinforced concrete, not soft limestone. What you see is what you cut.
Drive Disc Included: We ship a fresh drive disc with every blade because a worn disc is the #1 cause of vibration that kills segments early.
Engineer-Level Support: Got a question about bond hardness or segment taper? You'll talk to someone who speaks the language, not a script-reading agent.
Factory-Direct Pricing: No importer markup, no distributor margin. You pay for the metallurgy, not the middlemen.
FAQ
Q: What is a reinforced concrete ring saw blade, and when should I use one instead of a wall saw blade?
A: A reinforced concrete ring saw blade is a large-diameter diamond blade engineered for deep, straight cuts through thick walls and slabs containing steel reinforcement. Unlike standard circular blades that max out around 150 mm depth, a 14-inch ring saw blade reaches approximately 270 mm, and a 17-inch model up to 325 mm. Use one when you need to cut through reinforced concrete walls, bridge columns, or foundation openings in a single pass without the complex setup and track installation required by a wall saw.
Q: Can this blade actually cut through rebar and wire mesh, or will it just destroy the segments?
A: Yes, it can cut through rebar and mesh-but only if the bond matrix is formulated for it. This reinforced concrete ring saw blade uses a harder bond and high-grade synthetic diamonds specifically selected to handle the thermal and mechanical stress of steel reinforcement. Standard concrete blades will shed segments or glaze over when they hit rebar because their bond is too soft for metal. We've tested this blade on #4 through #8 rebar and standard wire mesh with consistent performance.
Q: How deep can your ring saw blade cut in a reinforced concrete wall?
A: Our 14-inch model cuts to approximately 270 mm depth, while the 17-inch reaches roughly 325 mm. These are real-world depths measured in reinforced concrete with typical rebar densities. If your wall is thicker, you can cut from both sides to achieve double the depth, or step up to a wire saw system for monolithic structures beyond 650 mm.
Q: Why do segments sometimes chip or break off when cutting reinforced concrete?
A: Segment loss in reinforced concrete usually comes from four things: overheating (insufficient water or flow blockage), side pressure (twisting the blade in the kerf), impact (hitting rebar at full plunge speed), or bond mismatch (using a standard concrete blade on rebar). Our blade minimizes this through laser welding, a ribbed reinforced core, and a bond specifically engineered for steel-concrete transitions. Still, proper operator technique-especially easing up on feed pressure at rebar-is essential.
Q: How do I know when my ring saw blade is worn out and needs replacement?
A: You'll notice three signs: cutting speed drops by 30% or more even after dressing, the segment height is worn down to within 2 mm of the steel core, or the blade starts vibrating excessively. For safety, never let the segment wear flush with the core-once the steel core contacts the concrete, it can shatter or kick back violently.
Q: Do you offer custom bond formulations for different concrete types or private labeling?
A: Yes. We regularly produce custom segment heights, bond hardnesses, and core markings for rental fleets and regional distributors. Need a softer bond for abrasive high-quartz concrete, or a harder bond for ultra-high-performance concrete with dense rebar? Send us a sample of the material and we'll dial in the formula. Private label and OEM branding are available with flexible minimum orders.
