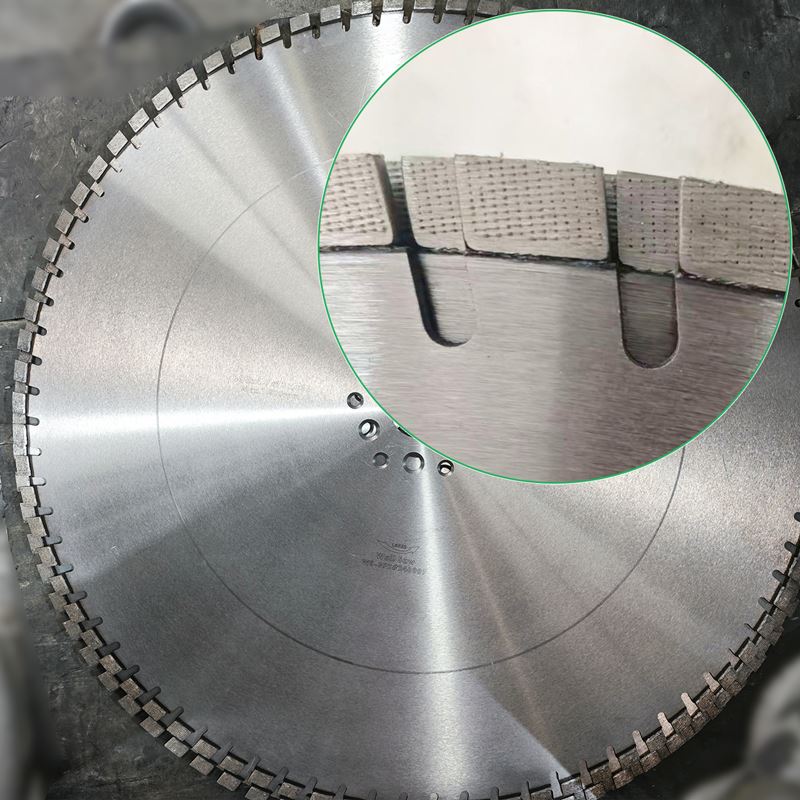

Ordered Segment Diamond Wall Saw Blade

A: For bridge demolition and cutting reinforced concrete bridge decks, piers and beams, the commonly used diameters range from 800mm (32 inch) to 1600mm (64 inch). Small local trimming & shallow cuts: 800mm / 1000mm blades Deep full-thickness cutting of thick bridge piers and heavy beams: 1200mm, 1400mm or 1600mm large wall saw blades Ordered array/Arix style blades are highly recommended for bridge projects, as they handle dense rebar inside bridge concrete much better than standard blades. Custom bore sizes and long-life 15mm segments are available for heavy bridge construction work.

A: Ordered array (Arix style, ordered diamond segment) laser welded diamond wall saw blade is the top choice for heavy reinforced concrete full of dense steel rebars. Its evenly arranged diamond grits share cutting pressure evenly without fast glazing or diamond chipping. Compared with standard random segment blades, it delivers 30%-50% faster cutting speed and 25%-40% longer service life. Select hard bond formulas with 13.5mm or 15mm tall segments for old, hard rebar concrete; medium bond segments fit new reinforced concrete structures.

A: Diamond layout: Ordered array blades fix diamonds in neat regular 3D grids via precise molds; standard blades mix diamond grit randomly inside segments. Cutting efficiency: Ordered array cuts 30%-50% faster on reinforced concrete without stalling on steel bars. Lifespan: Ordered segments wear uniformly and extend service life by 25%-40%; standard blades suffer partial premature grain loss and glaze easily. Vibration & finish: Ordered array runs with low vibration, creating smooth clean cutting slots; standard blades produce heavy shake and rough chipped wall edges. Heat dissipation: Gaps between ordered diamonds form natural cooling and chip removal channels to avoid segment burning during continuous cutting; random stacked diamonds trap heat easily. Overall cost: Ordered array blades have a slightly higher unit price but lower cost per cutting meter for large demolition projects. 4. how long does a diamond wall saw blade last? Service life depends on blade type, concrete hardness, rebar density and cooling water supply: Standard random segment wall saw blade: Around 120–220 square meters for normal reinforced concrete; only 60–100 square meters for heavy rebar old concrete. Ordered array / Arix wall saw blade: 200–350 square meters on standard reinforced concrete; 130–220 square meters for dense steel bar bridge concrete. Adequate continuous water cooling and steady feeding speed can extend blade lifespan by roughly 30%. Lack of water or forced fast cutting will drastically shorten working time and burn diamond segments.

A: Yes, you can cut granite with diamond wall saw blades, but you need to pick blades matched with hard bond diamond segments. Standard blades for soft concrete will wear out very quickly on hard granite. Our ordered array wall saw blades with hard bond formulas perform stably on granite walls and stone structural components. Note that wall saw blades are designed for thick deep cuts, not fine polishing or thin slab cutting; use dedicated stone saw blades if you process a large volume of granite slabs.

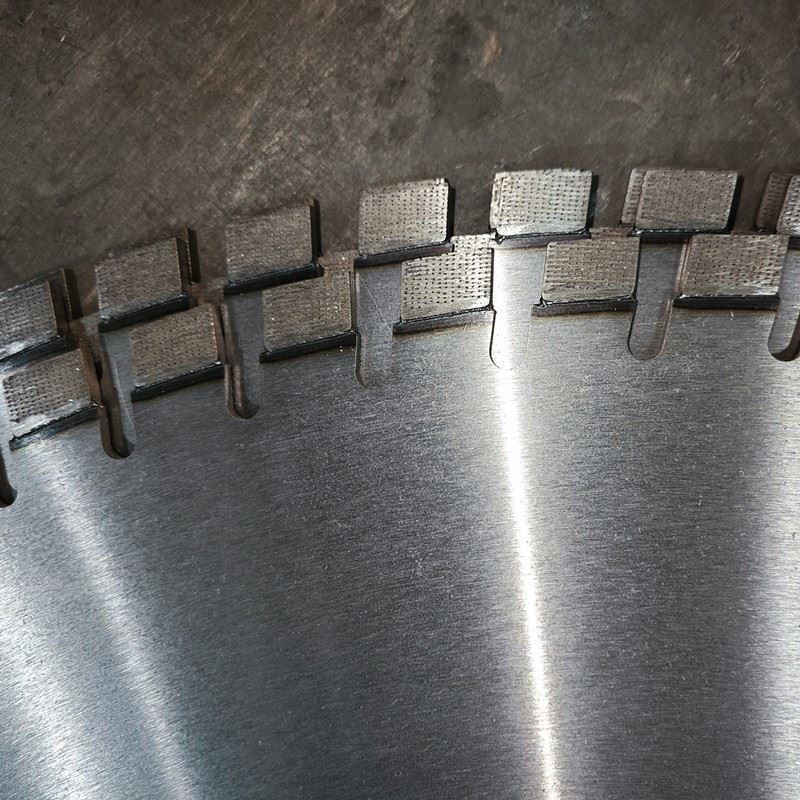

A: An ordered diamond segment, also known as Arix-style segment, is a laser welded cutting segment with diamond particles arranged in fixed, evenly spaced matrix grids instead of random mixing. Precision molds position every diamond grain at equal intervals during sintering. Each diamond bears balanced cutting force, eliminating blank cutting zones and diamond stacking problems of traditional segments. This special segment structure achieves faster cutting speed, longer service life and lower vibration, especially suitable for heavy-duty reinforced concrete, bridge and demolition cutting projects.
