Diamond Blade For Asphalt Factory
Diameter: 12" to 32"
segment height: 10mm
Bore Diameter: 25.4/50/60mm
Welding type: Laser welded
For more specifications and discounted prices, please contact customer service.

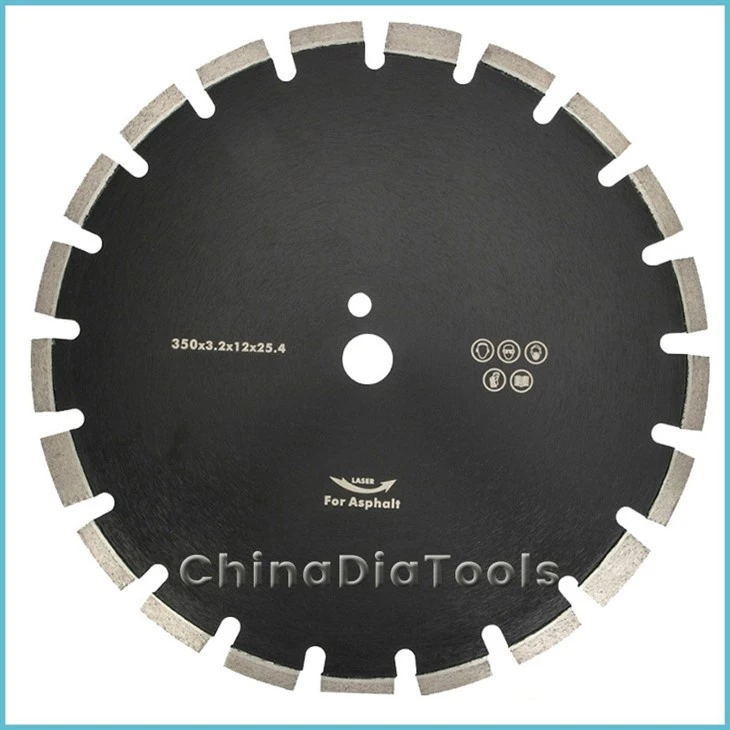

Asphalt Cutting Diamond Saw Blades
HuiceTools Company supply diamond blade for cutting asphalt. Our diamond saw blade for asphalt is usually for roadway construction, demolition and parking lot applications.
Our asphalt cutting diamond saw blades come laser welded, the U slot gullet design allows for quick and efficient debris removal to provide fast cutting action and prevent segment loss.
Wet cut only with sufficient water.
Suit for hand held circular saw, gas powered saw, walk behind saw.
Our company uses high-quality diamond abrasives as raw materials, which have sharp cutting, fast cutting speed and high efficiency.
The laser welded turbo diamond saw blades produced by Huice Factory are used to cut various types of concrete, asphalt, new concrete, and old concrete.
These saw blades are usually installed on floor cutting machines, electric/pneumatic/hydraulic power cutting machines
Laser welding technology is used to make the diamond cutter head and saw blade base tightly and firmly bonded, and the connection is still strong even at very high temperatures. This makes the saw blade cut smoothly during cutting and has a long service life.
Our company has modern production equipment, including laser welding machines, dynamic balance detection equipment, UV marking machines, laser marking machines, etc.
Production workshop
Production workshop
Production workshop
HuiceTools also supply various type diamond saw blade
Segment style: Flat shape; Turbo Shape;
Sink Style: Keyhole sink, wide u sink, narrow sink;
Tipe style: High and low protection teeth, ordinary teeth, Helical teeth, Low protection teeth
Products parameter
|
Diameter (inch) |
Diameter (mm) |
Seg.W*T | Seg.No. | Application |
| 12" | 300 | 40*3.2 | 18/21 |
Asphalt & New Concrete & Fresh concrete |
| 14" | 350 | 40*3.2 | 21/24 | |
| 16" | 400 | 40*3.4 | 24/28 | |
| 18" | 450 | 40*3.6 | 37/32 | |
| 20" | 500 | 40*3.6 | 30/36 | |
| 24" | 600 | 40*4.0 | 42 | |
| 26" | 650 | 40*4.2 | 42 | |
| 28" | 700 | 40*4.6 | 45 | |
| 32" | 800 | 40*4.8 | 52 | |
| 36" | 900 | 40*4.8 | 60 |
* Other sizes are also available upon customers' request.
The easiest answer is the BOND of the blade. The bond is the metals that hold the diamonds in place. The bond consists of metal powder. The powder can be a mixture of a variety of metals such as cobalt, tungsten, nickel, and copper. Asphalt is softer then concrete so the metals that are used in the bond are the harder metals (cobalt & tungsten) For concrete the bond consists of softer metals (nickel & copper)
Another difference between the design of Asphalt vs Concrete blades is the core. Asphalt blades have a segment that will go further into the core, either a drop segment, wedge segment, radial segment, or tungsten or carbide kickers. The reason for this is because asphalt is more abrasive then concrete. Without the added features, your blade will undercut and thin out, because of the abrasive compounds grinding on the blade during cutting.
Reference for cutting depth of saw blade
| Diameter | Cutting Depth |
| 350mm | 105mm |
| 40mm | 130mm |
| 500mm | 180mm |
| 600mm | 225mm |
| 700mm | 270mm |
| 800mm | 310mm |
| 900mm | 355mm |
| 1000mm | 400mm |
| 1200mm | 500mm |
Tips: High-quality diamond saw blades can greatly improve workers' work efficiency and reduce costs. Huice's diamond saw blades have good quality, stable performance, and high cost-effectiveness.
How to choose best blade
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Selection and use of saw blades
- Choose the appropriate diamond saw blade according to different usage scenarios;
- It is recommended to use a professional cobblestone-specific sharp diamond saw blade for cutting cobblestone pavement;
- For old roads or pavement with a concrete grade of C60 or above, use a special saw blade for cutting old concrete roads;
- For cutting cement piles, use a special or economical diamond saw blade for cutting piles.
Huice has rich experience in designing and producing diamond saw blades, and is good at manufacturing diamond saw blades for various purposes, such as cutting concrete, reinforced concrete, old road concrete, new concrete, high-grade concrete, green concrete, cobblestone pavement, asphalt pavement, etc. We have high-quality diamond saw blades with high cost performance, outstanding performance and affordable price. Welcome to buy.
Use diamond saw blades correctly
- Check whether the machine is normal and the balance of the saw blade
- When cutting, add enough cooling water and check whether the water pipes are normal to ensure that the saw blade is fully cooled during cutting
- When cutting, avoid rapid cutting, strong cutting, and tilted cutting. Ensure uniform speed.
Huice Tools also provides high-quality uniformly distributed diamond saw blades (with diamond arranged in an orderly manner, Arix diamond tools) with high cutting efficiency and stable performance. The sharpness is 10-25% higher than that of ordinary saw blades
Huice Best Selling Diamond Blade
arix segment diamond wall saw blade
diamond blade for concrete turbo segment
diamond blade for cutting asphalt
diamond ring saw blade
double tips diamond wall saw blade
thick road cutting diamond saw blade
turbo segment diamond blade for concrete
U shape diamond wall saw blade
* For more type of diamond saw blades, please contact Huice Tools.
Huice Diamond Tools Factory
Automatic hot press machine is an important and critical process in the manufacturing of bonded diamond tools
Our company has a modern industrial plant of 38000 square meters
Huice Diamond Tools Office building
The workers are working hard to inspect the products as soon as possible
Saw blade production workshop
Saw-blade-production-workshop
Tips
Quanzhou Huice New Material Co.,Ltd. is an experienced diamond tool manufacturer. The core backbone of the company has been engaged in the diamond tool industry for more than 18years. The chief engineer comes from China's core unit of superhard materials Abrasives Grinding Institute, and has been engaged in the research of superhard materials and abrasives for 20 years. At present, the core business is stone diamond tools, civil engineering diamond tools, diamond tools for building materials industry, super hard material grinding wheel and hardware diamond tools.
