Products Description
Our company provides users with metal-bonded sintered diamond segments for diamond drill bits, which can be used for drilling and punching operations in stone and concrete. Our products have stable quality and superior performance, and provide OEM services to many well-known brands at home and abroad.

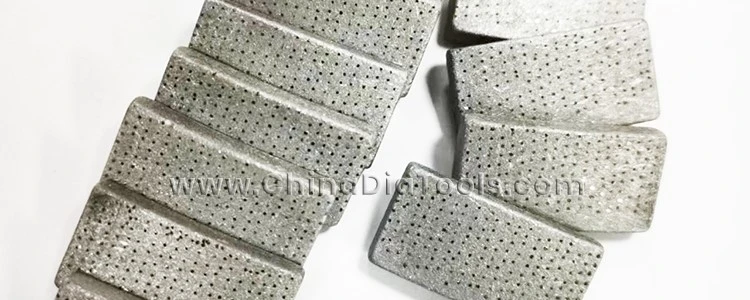

Our diamond segment for core drill bit, including crown-shaped diamond segments, worm-shaped diamond segments, sector-shaped diamond segments, sharp-angle tooth-shaped diamond segments, floating-point diamond segments, etc.
Products Specification
|
Diameter |
Segment Size |
Segment No. |
|
2.25"(57mm) |
22x3.5x10 |
5 |
|
2.50"(63mm) |
22x3.5x10 |
6 |
|
2.75"(70mm) |
22x3.5x10 |
7 |
|
3"(76mm) |
22x3.5x10 |
8 |
|
3.25"(82mm) |
22x3.5x10 |
9 |
|
3.50"(89mm) |
22x3.5x10 |
10 |
|
4"(102mm) |
22x3.5x10 |
10 |
|
4.25"(108mm) |
22x3.5x10 |
11 |
|
4.50"(114mm) |
22x3.5x10 |
11 |
|
4.75"(120mm) |
24x4.0x10 |
11 |
|
5"(127mm) |
24x4.0x10 |
11 |
|
5.5"(140mm) |
24x4.0x10 |
12 |
|
5.75"(146mm) |
24x4.0x10 |
13 |
|
6"(152mm) |
24x4.0x10 |
13 |
|
6.25"(159mm) |
24x4.0x10 |
14 |
|
6.5"(165mm) |
24x4.0x10 |
15 |
|
7"(178mm) |
24x4.0x10 |
16 |
|
8"(203mm) |
24x4.5x10 |
18 |
|
9"(229mm) |
24x4.5x10 |
20 |
|
10"(254mm) |
24x4.5x10 |
23 |
|
11"(280mm) |
24x5.0x10 |
25 |
|
12"(305mm) |
24x5.0x10 |
27 |
|
13"(330mm) |
24x5.5x10 |
30 |
|
14"(356mm) |
24x5.5x10 |
32 |
The minimum size can be 16mm in diameter, and the diameter of conventional diamond drill bits can be 350mm. Due to the small market demand, diamond drill bits with diameters exceeding 350mm do not have the matrix in stock, and the customization cycle is long. If you need it, please contact our customer service staff.
Arix Diamond Segment for Drill Bit
Uniformly distributed diamond adopts a method of arranging diamond particles evenly and orderly. Compared with traditional diamond tools, the diamond is exposed more evenly during the drilling process, and the force is evenly applied during the drilling process, making the diamond drill bit drill faster. Increased by more than 15%-20%.
About Us

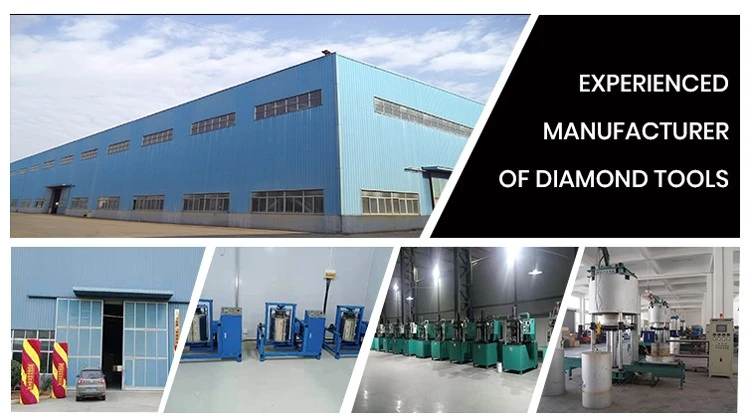

Quanzhou CHAORI Diamond Tools Co.,Ltd. is a leading manufacturer and supplier of high-quality diamond segments. With years of experience in the industry, this company has established itself as a reliable and trusted source of diamond segments for various applications.Their diamond segments are designed and manufactured using advanced technology and high-quality materials to ensure superior performance and durability. They offer a wide range of diamond segments for cutting, grinding, and drilling various materials including concrete, asphalt, stone, and ceramics.
