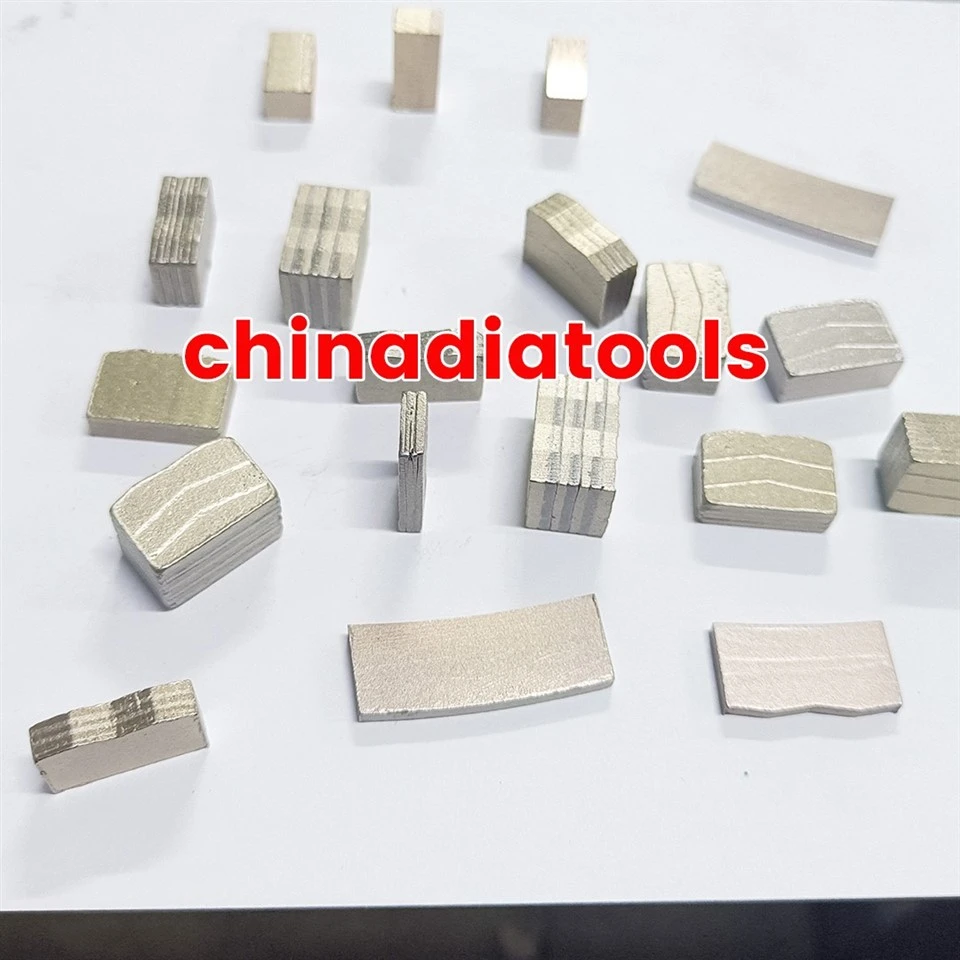

Diamond Edge Cutting Segment For Granite
Segment Type: Flat Shape Diamond Segment, T shape and TT shape Diamond Segment, Groove Type Diamond Segment, W shape Diamond Segment, Arix Diamond Segment and other type of Diamond Segment.
Diameter: 300-800mm
Arbor: 50/60
Steel Body: Silent or Non-silent
diamond edge cutting segment for granite
Our company produces various Edge Cutting Diamond Segment for cutting granite and other very hard natural and artificial stones. It has the characteristics of sharp cutting, smooth cutting, long service life, and stable performance.
Specification of edge cutting granite diamond segment TT
|
Product Code |
Diameter |
Thickness |
Segment Dimension |
Segment Number |
Application |
Note |
|
Seg_GTT |
φ300 |
2.2/2.0 |
40×3.6/3.3/3.0×15(40) |
21 |
Granite and various hard stone with quartz |
Silent or Non Silent |
|
φ350 |
2.4/2.2 |
40×3.6/3.3/3.0×15(40) |
24 |
|||
|
φ400 |
2.8/2.4 |
40×4.0/3.7/3.4×15(40) |
28 |
|||
|
φ450 |
2.8/2.6 |
40×4.3/4.0/3.7×15(40) |
32 |
|||
|
φ500 |
3.2/2.8 |
40×4.3/4.0/3.7×15(40) |
36 |
|||
|
φ550 |
3.2/3.0 |
40×5.0/4.7/4.4×15(40) |
38 |
|||
|
φ600 |
3.6/3.2 |
40×5.0/4.7/4.4×15(40) |
42 |
|||
|
φ650 |
4.0/3.6 |
40×5.0/4.7/4.4×15(40) |
46 |
|||
|
φ700 |
4.0/3.8 |
40×5.4/5.1/4.8×15(40) |
50 |
|||
|
φ800 |
4.5/4.2 |
40×6.0/5.7/5.4×15(40) |
57 |
* Other specifications are available upon request.
* Our company also produce and supplies another diamond saw blade similar to this one, with a Diamond Segment length of 20.
Granite edge cutting saw blades are usually installed on stone cutting equipment such as bridge cutters and gantry saws, used to cut standard slabs or stone slabs of the entire stone block. Usually, this specification comes in 30 * 30 or 60 * 60. Our diamond edge cutting segment for granite have sharp cutting edges, especially for ultra hard stones and granite rich in quartz. Not only is the cutting speed fast, but the service life is long, and the performance is very stable with high cost-effectiveness, it is the best choice for granite stone factories.
Other type diamond edge cutting segment
We also provide other type of diamond edge cutting segment for granite , such as Flat Diamond Segment, Turbo Diamond Segment, L20 Diamond Segment, U shape Diamond Segment, W shape diamond Segment, Arix Segment for granite cutting.
Huice Diamond Tools Factory
Automatic hot press machine is an important and critical process in the manufacturing of bonded diamond tools
Our company has a modern industrial plant of 38000 square meters
Huice Diamond Tools Office building
The workers are working hard to inspect the products as soon as possible
Automatic mixing machine
Modern fully automatic powder making machine greatly improves production efficiency
If you would like high-quality diamond segments, granite saw blades, customized diamond granite cutting saw blades, and granite edge cutting diamond segment. Contact us now. Huice Company is a well-known diamond tool manufacturer in China, with excellent performance and high cost-effectiveness.
