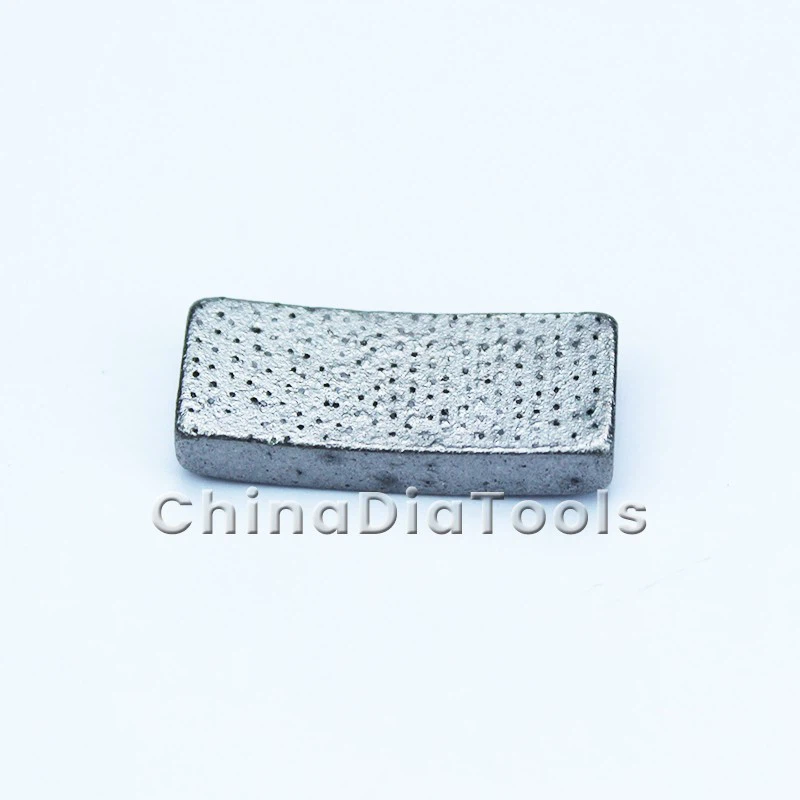

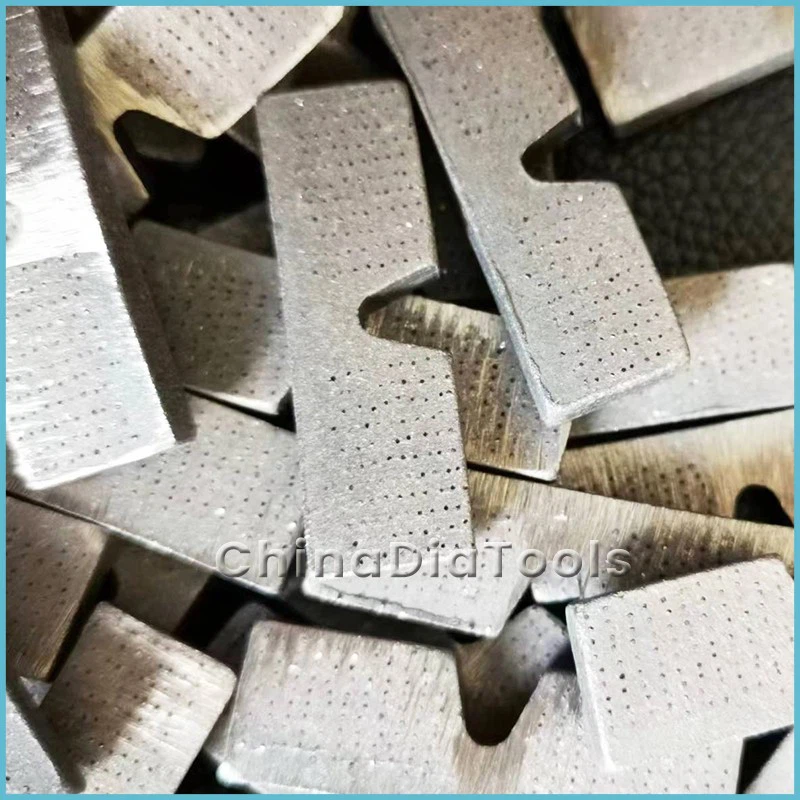

Matrix Diamond Segment

Matrix Diamond Segment is also called ordered arrangement Diamond Segment. The traditional Diamond Segment is made by randomly mixing diamond particles and metal matrix powder and sintering them, and the distribution of diamond inside the Diamond Segment is random and disordered. The orderly arrangement technology(matrix diamond segment) uses advanced equipment and processes to accurately and fixedly place each diamond particle in the matrix according to a pre designed pattern, spacing, and position.

• Traditional random distribution: Like sesame seeds scattered randomly on bread, the distribution is uneven.
• Ordered arrangement and distribution: like solder joints on an integrated circuit board, each one is precisely positioned.

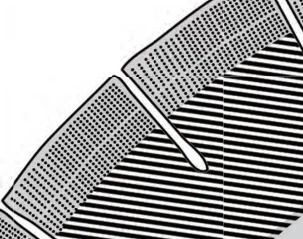

The black dots shown in the above figure represent diamonds with uniform distribution (ordered arrangement).

2, The core principles and advantages of ordered arrangement technology
The reason why this technology is powerful is that it fundamentally optimizes the working mode of diamond.

1. Controllable blade and wear

• Principle: Each diamond is firmly "held" in a predetermined position by the matrix, with uniform spacing between them. After the outermost layer of diamond wears off, the next layer of diamond will appear in the exact same position and continue to work.
• Advantages: It achieves extremely smooth and predictable progressive wear of the cutting head, avoiding the problems of "cluster detachment" or "local absence of diamond" caused by random distribution of traditional diamond segment.

2. Excellent chip storage and cooling space

• Principle: The regular arrangement between diamonds naturally forms regular chip removal channels.
• Advantage: The coolant and cutting debris can be smoothly discharged through these channels, greatly improving the heat dissipation effect and effectively preventing the diamond segment from being "burned" and "stuck" by debris due to high temperature.

3. Lower cutting force and higher sharpness

• Principle: As each diamond works independently and effectively without interference, the optimal number of abrasive particles involved in cutting is achieved.
• Advantages: significantly reduced cutting resistance, smoother blade operation, higher cutting efficiency, and lower power consumption. It feels like the saw blade is' sharper '.

4. Customizable cutting behavior

• Principle: By changing the arrangement of "patterns" (such as squares, diamonds, hexagons), spacing, and layers, it is possible to customize the most suitable diamond segment for different cutting materials (such as hard granite, soft marble, high abrasion concrete) like a design program.
• Advantage: Tailored cutting performance has been achieved, with strong professionalism and targeting.

The traditional Matrix diamond segment wall saw blades come from European companies such as Husqvarna,  Hilti,  and Tyrolit. But with the breakthrough of technology, our company has mastered the uniform diamond technology since 2013. After more than ten years of market testing, our Matrix diamond segment saw blades have achieved qualitative development. With the advantage of China's industrial concentration belt, our company's Matrix diamond segment wall saw blades not only have high sharpness and long service life, but also stable performance and cost-effectiveness far exceed European brands. And provide OEM production for multiple European and American brands.

Our matrix diamond segment ring saw blade can perfectly replace Husqvrna's ring saw blades. At the same time, we provide OEM production for multiple brands, matching different brands of ring  saw cutting machines

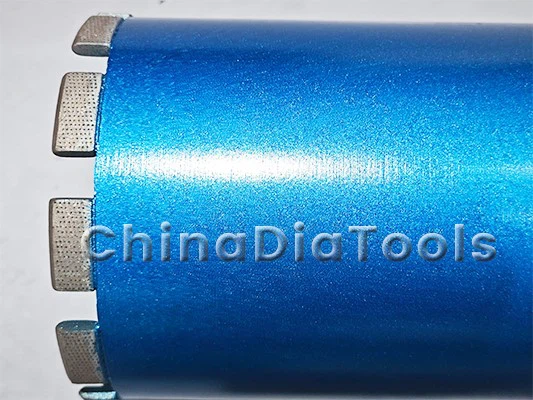

Our matrix diamond segment drill bits are mainly manufactured for high-end European and American brands. Generally used for drilling and expanding holes in concrete and steel-concrete.

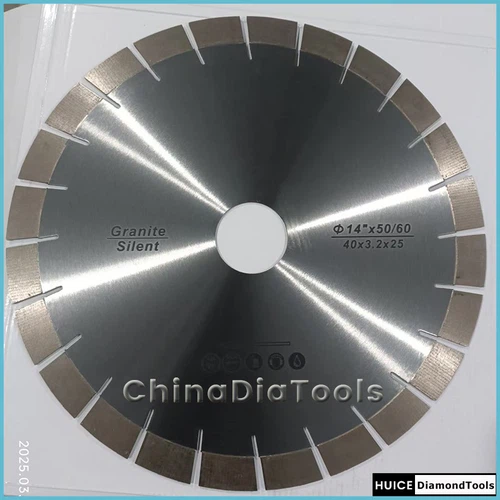

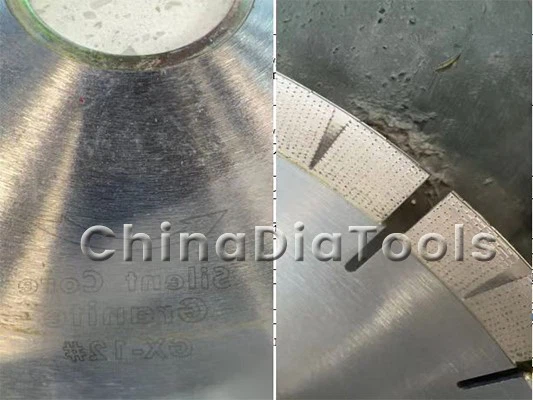

Our matrix diamond segment granite saw blades are mainly produced by some high-end brands through OEM manufacturing. These saw blades have higher sharpness and durability, and are highly favored by high-end market users

If you want to get the latest direct prices from blade OEM factories, high-end matrix diamond segment  & diamond saw blades, and the best diamond wall saw blades, please contact us now
