Ordered Array Engineering Diamond Drill Bit

• Traditional Drill Bits: Diamonds are randomly mixed into the metal matrix, resulting in localized clustering and gaps; uneven stress distribution leads to flattening, diamond loss, chip clogging, and inconsistent drilling speeds.
• Ordered-Array Drill Bits: Using precision mold positioning, diamonds are arranged in a fixed, equidistant 3D matrix within the bit segment. Each diamond shares the cutting load evenly, ensuring sustained sharpness and superior heat dissipation and chip evacuation throughout the process.

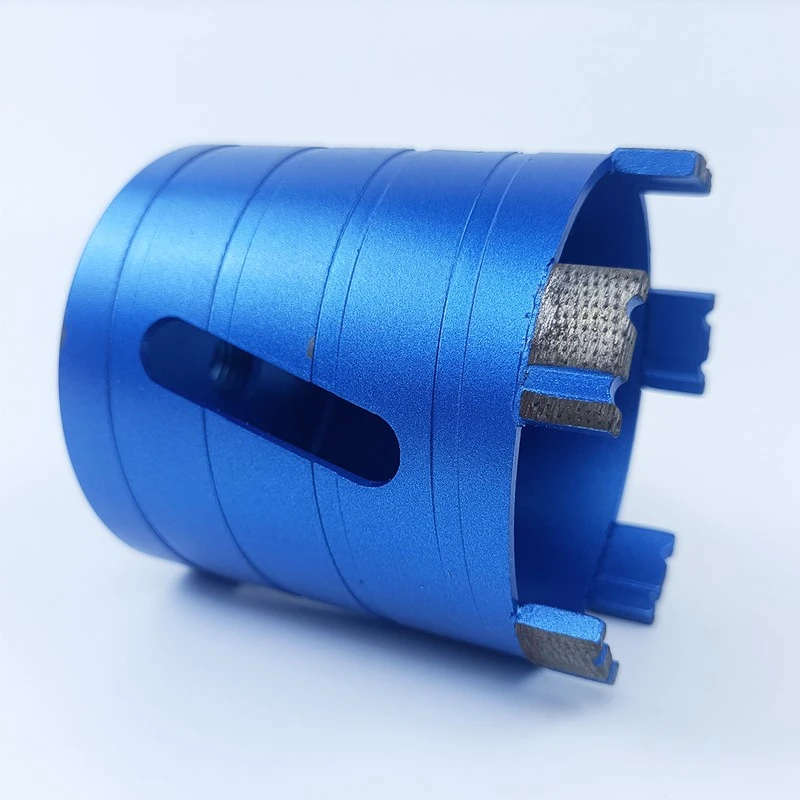

(Ordered array engineering diamond drill bit)

1 Drilling Efficiency Increased by 30%–50%

• Eliminates cutting gaps and reduces drilling resistance; significantly faster than standard bits when drilling through thick reinforced concrete or aged, hardened concrete, drastically shortening construction time.
•

2 Service Life Extended by 25%–40%

• Uniform diamond wear prevents premature localized depletion; a single bit drills significantly more holes under identical conditions, lowering the overall cost of consumables.

3 High Precision, Smooth Hole Walls, No Deviation

• Balanced force and reduced vibration prevent "bit drift"; holes have clean, smooth edges requiring no secondary finishing-ideal for high-standard applications like plumbing/electrical installation, bridge inspection, and wall-penetrating utility lines.

4 High-Temperature Resistance; Segment Burnout Minimized

• Gaps between diamonds create natural channels for chip evacuation and cooling; superior heat dissipation in both wet and dry drilling prevents diamond loss or matrix failure due to overheating during prolonged use.

5 Suitable for High-Hardness and Composite Materials

• Easily penetrates high-density aged concrete, multi-layer rebar, granite, and asphalt concrete; offers a distinct advantage in scenarios where standard bits would easily slip or jam.

6 Outstanding Overall Cost-Performance

• While the unit price is slightly higher than standard bits, the consumable cost per hole is lower; ideal for bulk procurement by equipment rental companies and large wholesalers; supports OEM/private-label manufacturing for overseas brands.

(HuiceTools also supply ordered array engineering diamond segments for concrete drill bit)

1. Welding Process: Full laser-welded segments; high impact resistance; segments remain intact during heavy-duty demolition drilling; high safety factor.
2. Segment Technology: Ordered array diamond segment (Arix-style structural arrangement).
3. Universal Connection Threads: 1-1/4" UNC and M14; compatible with mainstream commercial core drills and stationary coring rigs.
4. Specifications: Full range of diameters from 25mm to 400mm; effective lengths of 370mm/450mm; custom non-standard sizes available.
5. Operating Conditions: Primarily wet drilling; some models support short-term dry drilling; optimal performance achieved with water cooling.
6. Matrix Options: Multiple formulations (soft to hard) available; suitable for three material types: soft concrete, heavily reinforced hard concrete, and granite.

1. Urban demolition; core drilling for wall cutting operations.
2. Drilling for reinforcement/retrofitting and core sampling on bridges, columns, and dams.
3. Coring of aged, hardened concrete and asphalt road surfaces.
4. Wall penetration drilling for building plumbing, HVAC, and fire protection systems.
5. Drilling for granite and marble stone curtain wall projects.
6. Batch drilling for large-scale infrastructure, tunneling, and factory renovation projects.

1. What is ordered array diamond core drill bit?

An ordered array diamond core drill bit is a high-performance engineering drilling tool equipped with specially structured diamond segments. Instead of mixing diamond grit randomly inside the metal matrix like conventional bits, its diamond particles are positioned in regular, evenly spaced matrix layouts by precise molds (also known as Arix-style segments). Every diamond grain shares balanced cutting force during operation. Designed for heavy-duty construction and demolition, this core bit delivers faster drilling speed, longer service life and smoother holes for concrete, granite and bridge renovation projects. Our factory supplies this product with full OEM customization for global construction tool distributors.

2. Ordered array vs standard diamond drill bit difference?

1. Diamond layout: Standard bits adopt random diamond mixing, causing uneven grain distribution; ordered array bits arrange diamonds in neat fixed rows with uniform gaps.
2. Drilling efficiency: Ordered array bits cut 30%-50% faster, while standard bits easily slip or stall on hard reinforced concrete.
3. Service lifespan: Ordered segments wear evenly and extend service life by 25%-40%; standard bits suffer partial premature grain loss and glaze quickly.
4. Drilling precision: Ordered array models generate low vibration for straight, smooth holes without deviation; standard bits often produce rough, offset holes.
5. Heat dissipation: Regular gaps between ordered diamonds form natural cooling and chip removal channels to avoid burning segments during continuous drilling; random diamond stacking blocks heat dissipation easily.
6. Application cost: Though ordered array bits carry a slightly higher unit price, they cut the overall per-hole construction cost for large engineering projects.

3. Is ordered array engineering drill bit suitable for heavy rebar concrete?

Absolutely yes, it is the ideal pick for heavy rebar reinforced concrete. The evenly distributed diamond grains evenly disperse the huge impact force generated when cutting thick steel bars, preventing diamond chipping or segment breakage common on standard drill bits. Its excellent heat resistance and chip removal capacity support long-time continuous drilling on old hardened concrete densely filled with rebars, widely applied in bridge reinforcement, building demolition and concrete column reconstruction projects. Laser-welded ordered segments further boost impact resistance to tackle the toughest reinforced concrete working conditions.
