Porcelain Cutting Diamond Disc
This Porcelain Cutting Diamond Disc is built with an X-turbo (wave) segment rim for fast, smooth, and chip-free dry cutting of porcelain tile, ceramic, sintered stone, and other hard, brittle materials. Manufactured by Huicetools using hot-pressed sintering technology, it mounts directly on standard angle grinders and other handheld cutting machines, delivering aggressive cutting action, a clean finished edge, and a long service life.
key features
1
Sharp X-Turbo Cut
X-shaped wave segment exposes more diamond abrasive, biting fast through ultra-hard glazed porcelain without grabbing.
2
Smooth & Stable
Reinforced core keeps the blade true at high speed for low vibration, a steady feed, and clean, edge-friendly cuts.
3
Long Service Life
Hot-pressed sintered diamond layer plus 8 cooling holes resist glazing and overheating, lowering cost per cut.
4
Dry Cutting Ready
No water needed. 22.23mm arbor fits most angle grinders and cut-off tools straight out of the box.

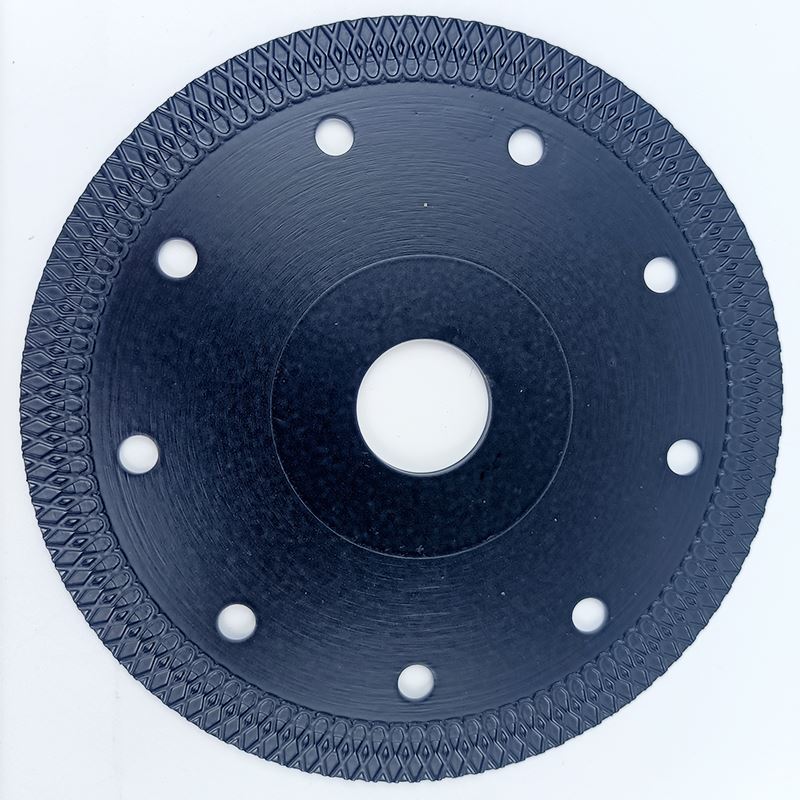

Porcelain Cutting Diamond Disc with X-turbo segment - designed for dry cutting hard tile and stone.
Close-up of the X-turbo rim and cooling holes. The textured diamond layer cuts sharp and clean.

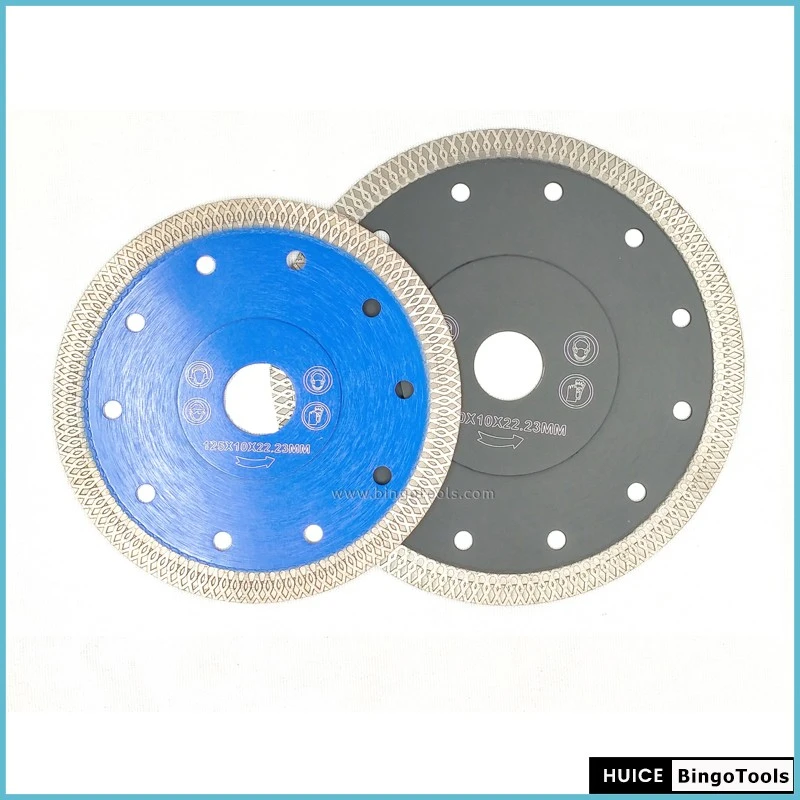

Also available in a black steel-core finish - same hot-pressed segment and aggressive cutting performance.
specification and package
| Product Name | Porcelain Cutting Diamond Disc (X Turbo Segment Diamond Saw Blade) |
| Outer Diameter | 4" / 5" / 6" / 7" / 8" / 10" |
| Arbor Hole | 22.23mm |
| Blade Thickness | 1.6 / 1.8 / 2.0 / 2.2 / 2.4 / 2.6 mm |
| Segment Type | X-turbo / wave turbo rim, with 8 cooling holes |
| Cutting Type | Dry cutting |
| Manufacturing Process | Hot-pressed sintered |
| Applications | Porcelain tile, ceramic, sintered stone / rock slab, stone, quartz, crystallized glass |
| Compatible Tools | Angle grinders and other handheld cutting machines |
| Color Options | Red / Black |
| Package | Individual plastic bag + color box / paper box; customizable |
* Outer diameter, thickness, and arbor size can be customized. For more specifications and the full size list, please send us an inquiry.
applications
- Porcelain & ceramic tiles, glazed tiles
- Sintered stone / rock slabs
- Marble, granite and natural stone
- Engineered quartz stone
- Crystallized / microcrystal glass
- Home renovation & tiling installation
- Municipal engineering & construction
- Concrete cutting & demolition work
The sharp segment and smooth cut make this blade a cost-effective choice for professional tile setters, stone fabricators, and contractors.
why choose huicetools
Founded in 2006, Huicetools has focused on the R&D and manufacturing of diamond tools for years, with deep experience in concrete and hard-material cutting saw blades. Our X-turbo diamond saw blade is specially designed for ultra-hard glazed materials such as porcelain and sintered stone, delivering excellent cutting results, higher operator efficiency, and lower production cost. It sells well on Amazon and other major e-commerce platforms, and we provide reliable OEM services for many well-known brands.
2006
Founded Year
OEM
For Well-Known Brands
Amazon
Best-Selling Online
B2B
Export Worldwide
Whether you are a distributor, brand owner, or tile & stone fabricator, we welcome your inquiry. Send us your required sizes and quantities, and we will get back to you promptly.
