Airtec Diamond Grinding Plate

Name: China Airtec Diamond Grinding Plate in Stock - Airtec Diamond Grinding Plate Manufacturers
Brand: HUICE
SKU: 319480858

Huicetools supplies Airtec Diamond Grinding Plate for concrete floor with 2 bar segment(also called as Airtec Grinding Shoes), factory direct sales, stable performance, and high cost-effectiveness. The company provides OEM production for multiple well-known brands throughout the year. The company has rich experience and strong capabilities.

Send Inquiry

Chat Now

Airtec Grinding Shoes · Double Bar Segments

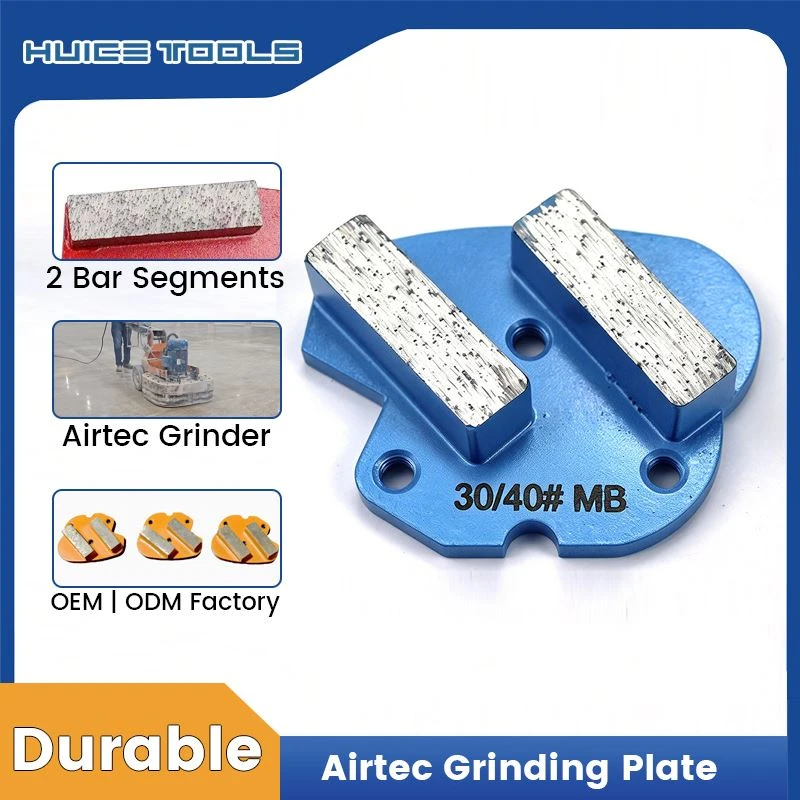

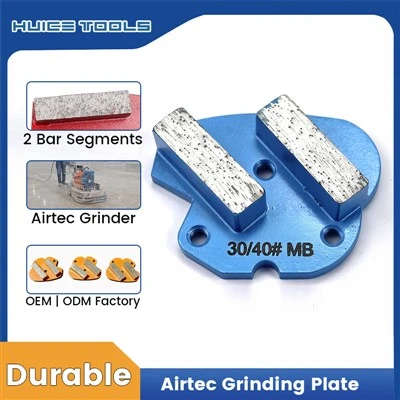

Airtec Diamond Grinding Plate

A custom segment profile diamond grinding plate (also called a grinding shoe or pad) for concrete, with a double bar segments developed to customer requirements. It delivers a high coverage area at a competitive low cost, for dry and wet grinding.

40 x 10 x 10 x 2 / 40 x 12 x 12 x 2Grit #16 / #36 / #60 / #120 / #2006 or 9 pieces per set

Airtec Diamond Grinding Plate

What This Tool Is

A Grinding Plate, Built For Concrete Floors

These newly designed Airtec diamond grinding plates (also called grinding shoes or pads) for concrete feature a custom segment profile developed per customer requirements. They deliver a high coverage area at a competitive low cost. Suitable for both dry and wet grinding, these Airtec diamond grinding plates come with bond options ranging from extra soft to extra hard.

Diamond grinding shoes with this special segment shape are primarily engineered for concrete floor grinding machines, and they also work well on stone floors.

Industrial diamond powder

The diamond segments are manufactured using industrial-grade diamond powder for consistent, dependable cutting performance.

Silver brazing

The segments are fixed to the metal base via silver brazing, giving a strong, heat-resistant bond.

High coverage, low cost

The custom segment profile covers a wide area while keeping the cost competitive for high-volume floor work.

Why HuiceTools

Factory Advantages

HuiceTools continuously develops new, cost-effective diamond grinding segments to serve our clients. Six things set the factory apart:

1. Factory Direct

Cost-efficient | OEM & ODM Available.

2. Professional R&D

Solid technical backing.

3. Strict QC

Advanced testing & skilled inspectors.

4. Fast Response Team

Nearly 7×24h support.

5. One-stop Service

Complete diamond tool product range.

6. Since 2006

Rich experience in diamond tools production.

Product Features

Six Practical Benefits

Durable composite

Durable metal & resin composite.

Efficient grinding

Efficient for concrete grinding & polishing.

Custom options

Custom grits & sizes available.

Competitive pricing

Superior quality, competitive pricing.

Quick delivery

Elegant packaging, quick delivery.

Outstanding service

Outstanding service.

Specification

Technical Data

The dimensions column lists the available diamond grits, and the segment size column lists the two segment profiles, each with two segments.

ProductAirtec Diamond Grinding Plate

Other nameAirtec Diamond Grinding shoes

KeywordAirtec Grinder; Double Bar Segments

ClassificationAirtec Grinding Shoes

Dimensions (grit)Grit #16; #36; #60; #120; #200

Segment size40 x 10 x 10 x 2; 40 x 12 x 12 x 2

Holes3 or customized

ColorCustomizable

MOQ6 or 9pcs

LogoLaser marking

Packingneutral white box package or customized package

Applications

Where It Works

This silver-brazed diamond tool is designed for floor grinders, generally supplied in sets of 6 or 9 pieces. Mounted on floor grinding equipment, it works on the surfaces below:

Epoxy & urethane

Efficiently strips tough epoxy, urethane and other surface coatings and toppings.

Rough concrete

Grinds all types of rough concrete surfaces.

Terrazzo & stone

Equipped with three threaded mounting holes, ideal for processing concrete, terrazzo and stone surfaces.

Coarse to fine

A wide selection of diamond grits covers tasks from coarse grinding through to fine finishing.

Selecting The Bond

Match The Bond To The Concrete

These Airtec diamond grinding plates come with bond options ranging from extra soft to extra hard. Read the table from the floor, not from the tool - the bond is matched to the concrete strength grade so the plate keeps cutting instead of polishing over.

	EXTRA SOFT BOND	SOFT BOND	MEDIUM BOND	HARD BOND	EXTRA HARD BOND
BOND HARDNESS	Very Soft	Soft	Medium	Hard	Very Hard
BEST FOR CONCRETE	Very Hard / Dense Concrete	Hard Concrete	Medium Concrete	Soft Concrete / Abrasive	Very Soft / Abrasive Concrete
PSI	5000-9000	4000-5000	3000-4000	1500-3500	1000-2000
MPA	C50-C65	C30-C50	C20-C40	C15-C25	C10-C20
AGGRESSIVENESS	Very Aggressive	Aggressive	Balanced	Low Aggression	Very Low Aggression
TOOL LIFE	★☆☆☆☆	★★☆☆☆	★★★☆☆	★★★★☆	★★★★★
HEAT GENERATION	High	High / Medium	Medium	Low / Medium	Low

HuiceTools Friendly Reminder: Selecting the correct bond hardness elevates performance, extends grinding tool lifespan and maximizes working efficiency. Please contact customer service for free access to detailed information. We can solve any difficult and complicated problems related to floor grinding , polishing and renovation.

Grit Selection

Coarse Versus Fine Grit

The dimensions range from Grit #16 to #200. A coarse grit removes material quickly, while a fine grit produces a smoother finish. Choose the grit by the stage of the job.

16# COARSE

✓Fast material removal
✓Aggressive grinding
✓Ideal for rough grinding
✓Surface prep & leveling

200# FINE

✓Smooth surface finish
✓Refined grinding
✓Ideal for polishing
✓High gloss results

Product Detail

Product Details

Four views of the same plate: how it mounts on the machine, the double bar segments, the available grits, and the packing. Replace each image with your own photograph.

On the machineThe plate fitted to the plate of a floor grinder.

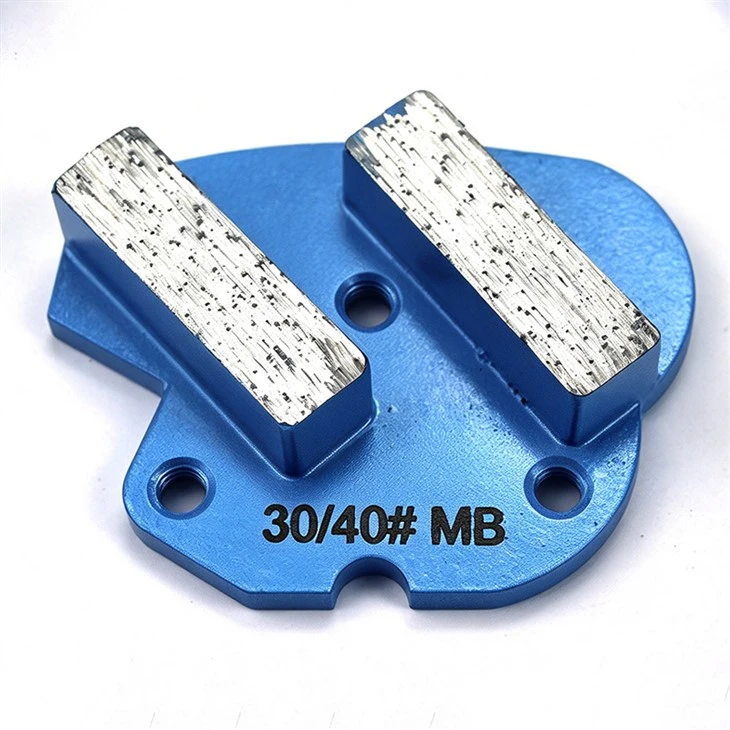

2-bar-segment-Airtec-diamond-grinding-shoes

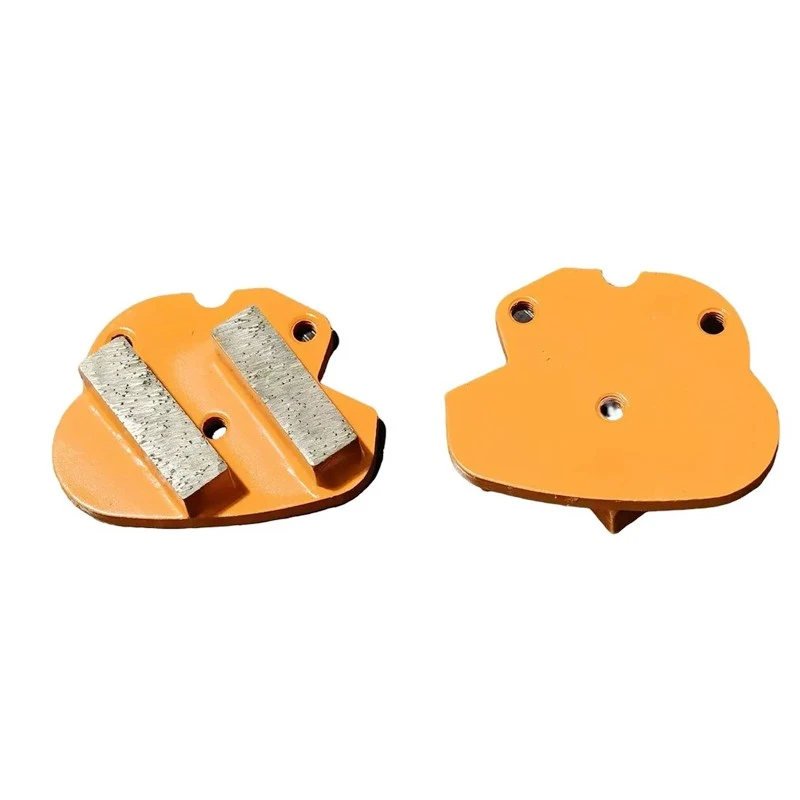

Double bar segmentsTwo bar segments fixed to the metal base by silver brazing.

Grit rangeFrom #16 coarse through to #200 fine.

huice-tools-package-of-diamond-grinding-shoes

PackingNeutral white box package or customized package.

Ordering

What To Send Us

Tell us your floor, your machine and your grit, and we can quote this plate against your job. OEM and ODM orders are welcome.

The floor

Whether you are grinding concrete, terrazzo or stone, and what coating is on top.

The machine

Your floor grinder model, so we confirm the three mounting holes match your plate.

The grit

Which grit you need - from #16 coarse through to #200 fine - or the finish you are aiming for.

The bond

Which concrete strength you are working in, so the bond is matched to the slab.

FAQ

Questions We Get Asked

What are Airtec diamond grinding shoes used for?

Airtec diamond grinding shoes are replacement diamond tools for Airtec concrete floor grinders. They are widely used for concrete surface preparation, rough grinding, epoxy/paint/glue stripping, terrazzo renovation and surface leveling. At Huicetools, we manufacture compatible Airtec grinding shoes with mature formulas and reliable performance for floor contractors worldwide.

Are Airtec grinding shoes M6 bolt-on fitting?

Yes, most standard Airtec diamond grinding shoes adopt M6 bolt-on installation, which is the common fitting for original Airtec grinder plates. Huicetools keeps strictly consistent with standard mounting dimensions to ensure perfect fitment.

What is the difference between Airtec PCD shoes and metal bond diamond shoes?

PCD grinding shoes use polycrystalline diamond cutters, designed mainly to strip thick coatings like epoxy, glue and paint. Metal bond diamond shoes contain diamond grits for concrete grinding, leveling and polishing prep. Huicetools supplies both types and supports customized PCD + diamond hybrid segments.

Which bond Airtec grinding shoe for hard concrete?

Soft bond Airtec grinding shoes are recommended for hard concrete. A soft bond matrix can release worn diamond grains easily to expose new sharp diamonds, avoiding glazing. Huicetools develops different bond systems to match hard, medium and soft concrete conditions.

Can Airtec PCD grinding shoes remove epoxy and glue?

Yes. Airtec PCD grinding shoes are the ideal choice for removing epoxy coating, carpet glue, adhesive and thin paint from concrete floors. Our Huicetools PCD segments go through strict R&D testing for long stripping life.

Send us your floor and your machine

Tell us the floor, what is on top of it and the grinder you run. We reply with the plate specification, the bond we recommend and a sample plan.
