Epoxy Self-Leveling Flooring Construction Process

Epoxy Self-Leveling Flooring Construction Process



Epoxy self-leveling flooring is currently one of the most commonly used and effective protective materials and measures in clean room flooring projects.



More than twenty years ago, for floors requiring high cleanliness, materials such as terrazzo, paint coatings, and various types of panel coverings were generally used for floor treatment.



In recent years, domestic and international companies have developed self-leveling floor coatings with epoxy resin as the main film-forming material and related construction technologies, which have been widely used in production and manufacturing facilities in various industries requiring high cleanliness. Engineering practice has shown that the use of epoxy resin self-leveling flooring technology provides superior overall results compared to other coatings.



Table of Contents

1. What is Epoxy Self-Leveling Flooring?
2. Characteristics of Epoxy Self-Leveling Flooring
3. Applicable Locations for Epoxy Self-Leveling Flooring
4. Construction Drawings and Construction Process
5. Precautions





Epoxy self-leveling flooring refers to a high-performance, aesthetically pleasing flooring system formed by multi-layer coating (primer, intermediate coat, topcoat) to create a dense, glossy protective film with excellent antibacterial, dustproof, and chemical corrosion resistance.



Composition of Epoxy Self-Leveling Materials:

It consists of epoxy resin and curing agent as the main film-forming materials, including special additives, reactive diluents, pigments, and fillers, processed in the workshop.





Epoxy resin self-leveling flooring provides a glossy finish upon completion.

① Advantages of Epoxy Resin Self-Leveling Flooring:

• The surface is dense and seamless, antibacterial and dustproof, easy to clean, and resistant to acids, alkalis, salts, oils, and various chemical solvents, resulting in a mirror-like finish.



② Disadvantages and Improvements of Epoxy Resin Self-Leveling Flooring:

• Epoxy resin self-leveling flooring is prone to yellowing and chalking under UV irradiation, softens easily at high temperatures, is susceptible to damage from sharp objects, and is difficult to repair. Improvements can be made by using an epoxy self-leveling base coat with a polyurethane topcoat to enhance wear resistance and weather resistance.



③ Price of Epoxy Resin Self-Leveling Flooring Materials:

• The price of ordinary epoxy resin self-leveling flooring materials is approximately 30-60 RMB per square meter.
• The above price is a rough estimate based on online information; the actual purchase price may vary significantly depending on brand, model, region, purchase channel, and quantity.







The core advantages of epoxy resin self-leveling flooring are "cleanliness, corrosion resistance, aesthetics, and seamlessness," making it suitable for areas requiring a high level of cleanliness.



For example:

• pharmaceutical factories,
• electronics and semiconductor cleanrooms,
• food processing plants,
• chemical plants,
• hospitals,
• chemical laboratories,
• computer rooms,
• pickling workshops,
• parking lots,
• etc.

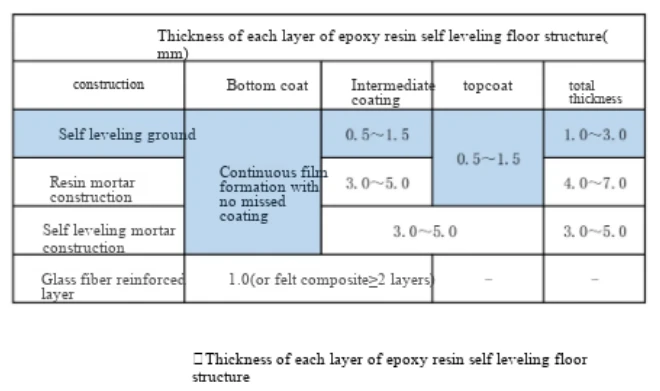

The construction of epoxy resin self leveling flooring is an interlocking multi-layer coating system, including a base coat, a middle coat, and a top coat.



Epoxy Self-Leveling Flooring Reference Procedure:

1. Substrate Preparation: The original floor surface must be ground, ensuring it is flat, dust-free, solid, and thoroughly dry.

2. Application of Epoxy Primer: After uniformly mixing the high-solids primer, apply it evenly to the substrate using a trowel. The topcoat can be applied approximately 4-8 hours later.

3. Application of Epoxy Mortar Intermediate Coat: Mix the intermediate coat A/B components according to the specified ratio. Add the required amount of quartz sand and quartz powder and mix thoroughly. Apply evenly to the primer using a notched trowel. The topcoat can be applied approximately 12 hours later.

4. Intermediate Coat Grinding and Finishing: After the intermediate coat has hardened for 12 hours, inspect the surface and repair any defects. Then, use a grinding machine to roughen the surface and clean it thoroughly.

5. Application of Epoxy Putty Layer: Small cracks in the substrate and damaged areas of the floor should be filled with epoxy resin.

6. Application of Epoxy Self-Leveling Topcoat: Mix the topcoat and hardener according to the specified ratio. Apply with a roller, using a "+" pattern to ensure even distribution of the coating.

8. After the topcoat is completely dry, personnel can enter after 48 hours, light machinery can enter after seven days, and the best results are achieved after 28 days.







① Epoxy self-leveling flooring is not suitable for outdoor use;

② The prepared primer material should be evenly applied to the substrate, and the coating process should be continuous without any missed areas.

③ When epoxy self-leveling flooring is applied to a concrete base surface, the concrete base should preferably be cast in one go, and its strength grade should not be less than C25.

④ Foot traffic is permitted after 7-10 days of curing, and the floor can bear weight after 28 days when it reaches its design strength.

⑤ A trial mix should be conducted before construction, and large-scale application should only proceed after the trial mix is ​​deemed satisfactory.
