Diamond Granite Block Wire Saw
Diamond Beads diameter: 8/9mm
Fixed by: Plastic or plastic+spring
diamond granite block wire saw Description
Our company supplies diamond wire saws for cutting granite blocks to major stone factories both domestically and internationally. Using diamond wire saw to cut raw stone materials can effectively improve production efficiency and reduce production costs. At present, there are many diamond wire saws on the market that replace traditional 2000mm single circular saws for cutting granite blocks.
Diamond wire saws can also perform curved cutting and irregular cutting. This brings convenience to stone product manufacturers.
diamond granite wire saw feature
- Large area cutting can be carried out, and the raw materials are neat and orderly;
- High yield of stone mining results in minimal waste of mining resources;
- High production efficiency;
- Safe and reliable homework, no noise or dust, environmentally friendly mining;
- The comprehensive cost of mining is low.
- Stable performance and high cost-effectiveness
- Large scale exports to overseas markets such as Eastern Europe, North America, South America, the Middle East, Australia, etc; The product quality has been unanimously recognized by overseas customers.
diamond granite wire saw paremeter
| Diameter | Beads/m | Fixed | Granite | Speed |
|
D8mm D9mm |
37/40 |
Plastic plastic+spring |
Soft Middle Hard Hard |
24-28 22-26 20-24 |
* For more specifications and performance requirements, please contact customer service for customization

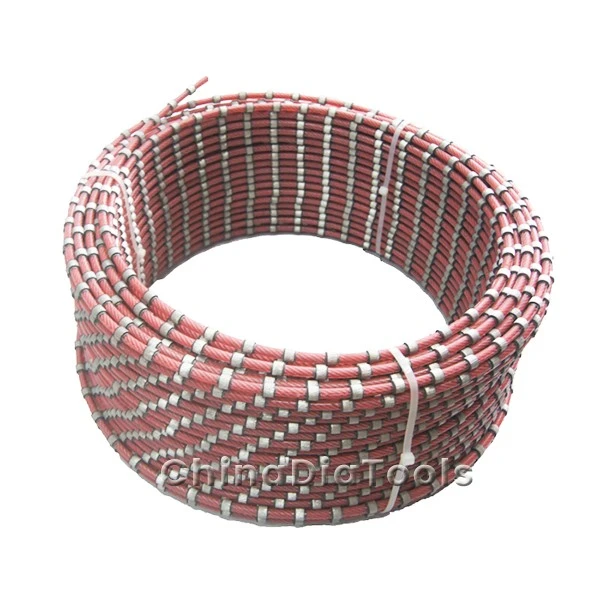

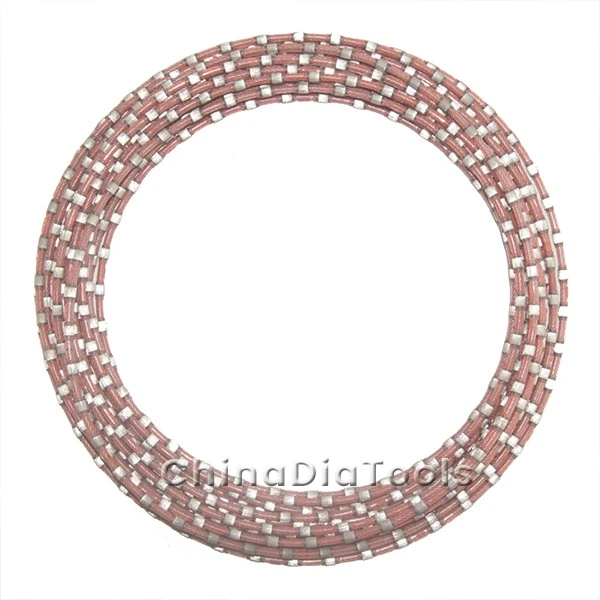

Product Photograph
Diamond Wire Saw Using Attention
1. Regularly check the rotation of the rope saw and adjust it in a timely manner
2. Regularly check the wear of the beads to avoid uneven wear. Once uneven wear occurs, timely measures must be taken.
3. Regularly inspect the wear of the joint and the beads at both ends of the joint, and replace the joint in a timely manner.
4. The tension of the steel rope is generally 250-300kg (Φ 4-5mm steel wire rope)
5. The linear speed during wire saw cutting is adjusted according to different types of stones:
1-2 grade granite: 25-30 meters per second
3-4 grade granite: 22-26 meters per second
Grade 5 granite: 20-24 meters per second
Marble: 30-45 meters per second
Grinding rock: 30-35 meters per second
6. During the initial cutting stage of the new rope, its line speed should be reduced by 2-3 meters per second compared to the aforementioned to facilitate bead cutting.
The water flow rate is generally between 12-25L/min.
