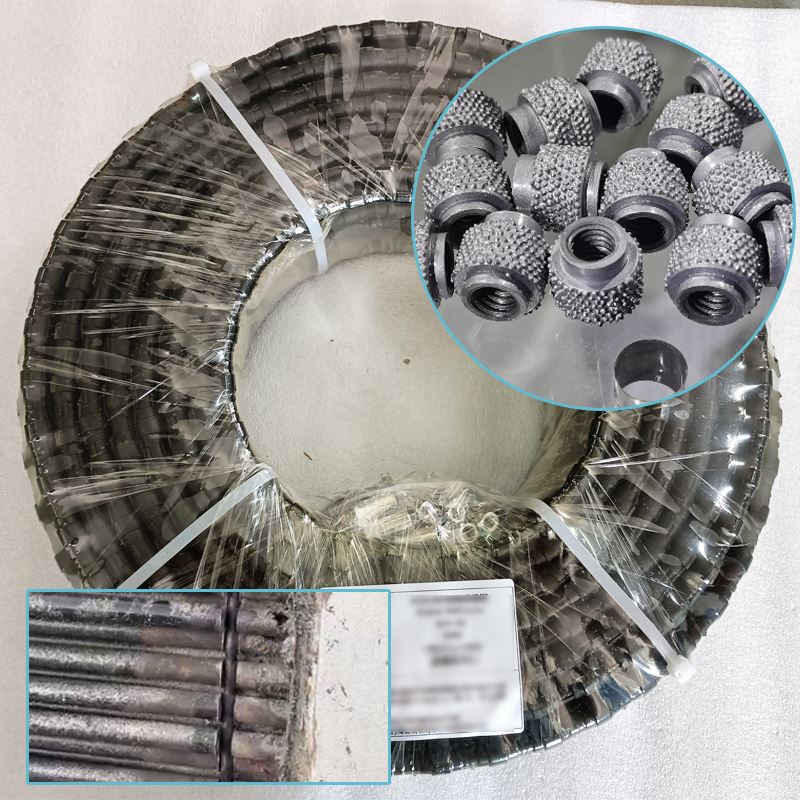

Brazed Diamond Wire Saw For Steel

Brazed diamond wire saw (vacuum brazed diamond wire rope) is a heavy-duty metal cutting wire saw specially optimized for solid steel, stainless steel, cast iron and heavily steel-reinforced concrete. Different from conventional sintered & electroplated wire beads, its diamond grits are bonded to steel beads via high-temperature vacuum brazing metallurgical bonding, forming firm chemical combination between diamond and alloy matrix, instead of simple physical wrapping or electro-deposition

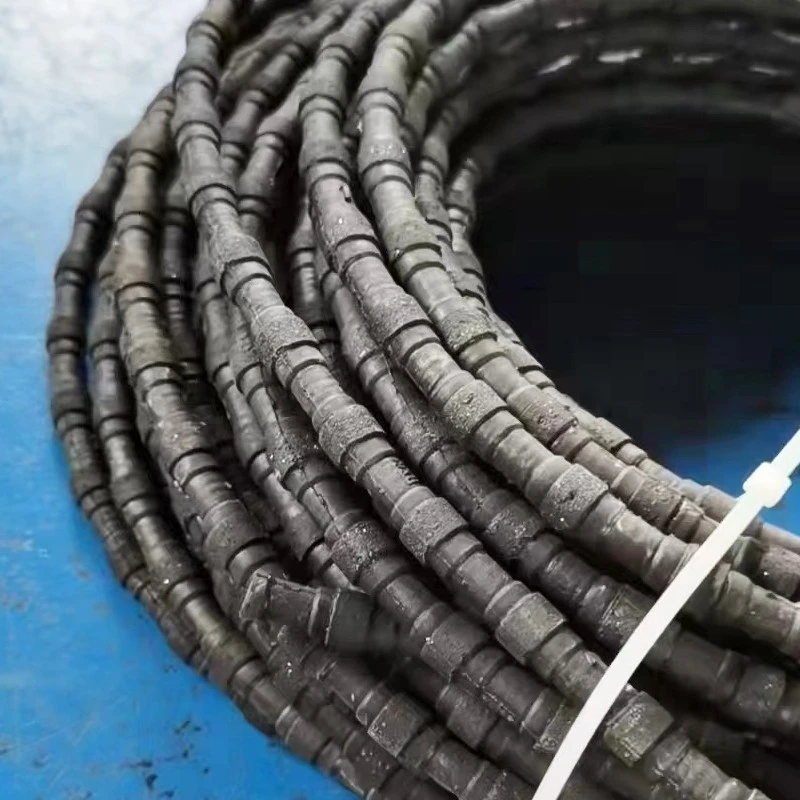

(Our brazed diamond wire saw is used on site for cutting large bundles of stainless steel pipes)

Our metal-cutting brazed wire adopts double-layer brazed bead design, matching high-power wire saw machines to cut pure steel structural parts, steel pipes, stainless steel profiles, gray/ductile cast iron and thick steel rebar inside concrete during demolition, nuclear facility dismantling and metal recycling projects.

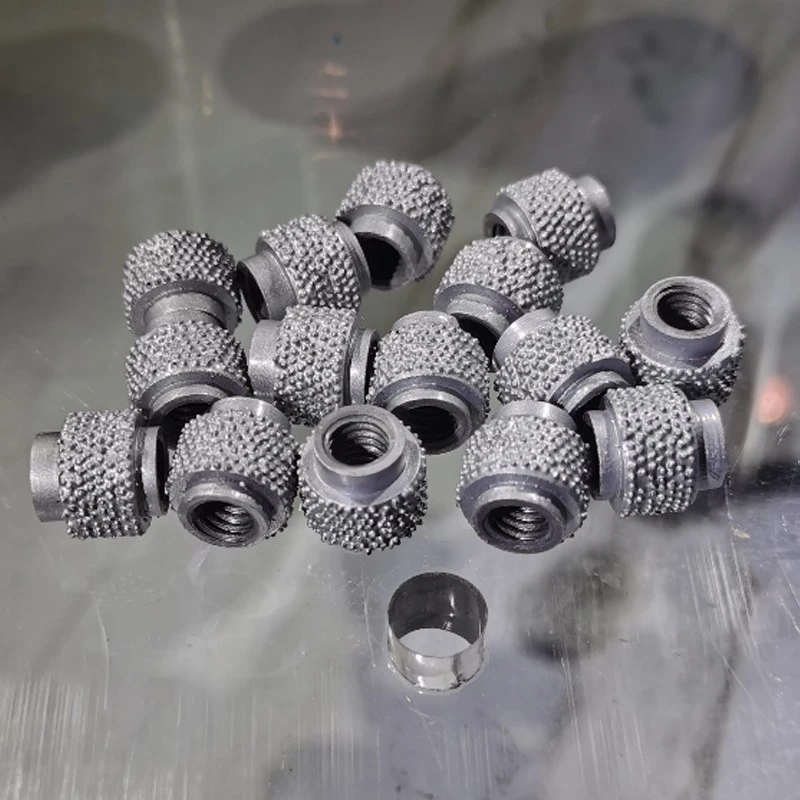

(Wear condition of brazed diamond beads)

After receiving the diamond wire saw produced by our company, the customer immediately put it into use. Using an electric wire saw cutting machine, the cutting effect is very good. The cutting speed is very fast. From the on-site pictures sent by the customer, it can be seen that they are cutting a large number of stainless steel pipes. From the wear of diamond bead, it can be seen that the diamond bead body(matrix) is evenly consumed and the diamond particles are exposed normally. The cutting is stable and fast, and the customer is very satisfied.

1. Ultra-high diamond exposure & aggressive cutting speed Diamond exposure ratio reaches over 70%, far higher than electroplated beads (30%-40%). It cuts steel 50% faster and cast iron 27% quicker than sintered wire saws, reduces machine load and power consumption by nearly
2. Strong metallurgical bonding, no diamond shedding under heavy metal friction When cutting hard steel & cast iron with high friction impact, brazed grits will not peel off easily, solving the biggest pain point of electroplated wire (easy grain loss when cutting metal)Normanther....
3. Continuous stable sharpness, no glazing Each diamond grain fully participates in cutting without passivation; avoids frequent downtime for wire replacement on long metal cutting tasks. Service life extends 35%-40% on stainless steel & cast iron compared with sintered wiregrindingwh....
4. Low cutting force, neat kerf without burrs Less vibration during metal sawing, smooth cutting surface with minimal metal burrs, no secondary grinding required. Perfect for precision dismantling of steel frames, cast iron equipment bases.
5. Dual wet & dry cutting compatible Works well with water cooling for mass metal cutting; short dry cutting available for narrow, hard-to-reach steel components. Thick wear-resistant rubber sleeves between beads reduce friction damage from steel chips.
6. Wide metal material compatibility Covers carbon structural steel, thick steel pipe, stainless steel 304/316, gray cast iron, nodular cast iron, alloy steel, heat-treated steel, plus heavy rebar concrete composite cutting

(Electroplated diamond beads)

Our company customizes single-layer brazed diamond wire saws, multi-layer brazed diamond wire saws, and multi-layer electroplated diamond wire saws according to user needs to meet various customer requirements

1. Demolition: Steel building frame dismantling, steel bridge cutting, nuclear facility metal structure decommissioning
2. Metal recycling: Cutting scrap steel, stainless steel pipes, cast iron machine blocks
3. Construction demolition: Cutting thick dense steel rebar inside reinforced concrete columns & beams
4. Industrial maintenance: Cutting cast iron equipment bases, alloy steel brackets, cooling steel tubes
5. Offshore & underwater cutting: Subsea steel pipeline cutting (special anti-corrosion brazed wire available)

Q1: What is brazed diamond wire saw?

A: Brazed diamond wire saw, also called vacuum brazed diamond wire rope, uses high-temperature vacuum metallurgical brazing to firmly bond diamond grits onto steel beads. Unlike sintered or electroplated beads, diamonds are fully exposed and locked by alloy solder instead of simple physical mixing or electro-deposition. Our heavy-duty version adopts double-layer brazed beads, specially customized for cutting steel, stainless steel, cast iron and heavily reinforced concrete in demolition & metal recycling projectsDiawe Tool....

Q2: What materials can brazed diamond wire saw cut?

A: It handles hard composite materials that regular wire saws struggle with:

Metal: Carbon steel, thick steel pipe, 304/316 stainless steel, gray/ductile cast iron, alloy steel

Construction: Dense rebar reinforced concrete, old hard concrete, granite

Scrapping & industrial: Steel frame buildings, cast iron equipment bases, subsea steel pipelines It can work on mixed layers of steel + concrete in one single cut without frequent wire replacementDefusco In...

Q3: Can brazed diamond wire saw work for dry cutting steel?

A: Short-time dry cutting is available for narrow hard-to-reach steel components, but continuous wet cutting with water cooling is strongly recommended. Water lowers high heat generated by steel friction, prevents bead thermal damage and extends wire lifespan by over 50%. Dry cutting is only suitable for temporary small cutting tasks without water supply

Q4: How long is the service life of double-layer brazed diamond wire on cast iron?

A: Under standard wet cutting conditions: Around 80–130 square meters cutting area for cast iron, 100–160 square meters for thick carbon steel. Lifespan varies based on machine power, water cooling and feed speed; stable slow feed speed can maximize wire working time.

Q5: Can brazed wire saw cut thin aluminum or copper metal sheets?

A: Not ideal. Soft non-ferrous metals easily stick to diamond beads, block chip removal and make the wire lose sharpness rapidly. Brazed wire is professionally developed for hard ferrous metals (steel, cast iron) and reinforced concrete.

If you want to learn more about brazed diamond wire saws, if you need to purchase high-quality brazed diamond wire saws, and if you are looking for tools to cut large steel blocks, stainless steel blocks, and cast iron blocks, please leave your contact information. Huice Tools provides you with professional diamond wire saw products and after-sales service
