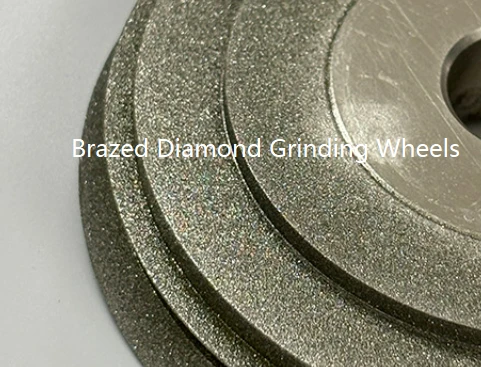

Advantages and Characteristics of Brazed Diamond Grinding Wheels

Brazed diamond grinding wheels have six advantages and characteristics, summarized as follows:

1. Exceptional Grit Bonding Strength:​

Utilizing a metallurgical bond between the brazing alloy, diamond grits, and steel core, the bonding strength reaches up to 120 MPa-significantly higher than resin bonds (~40 MPa). This ensures high grit retention, minimal shedding, and suitability for heavy-duty grinding under high impact.



2. High Efficiency & Sharp Cutting:​

The single-layer brazing process allows precise control over diamond protrusion height, creating ample chip evacuation space. This reduces cutting resistance, prevents clogging, and improves Material Removal Rates (MRR) by over 30%. Enhanced coolant access to the grinding zone further optimizes performance.



3. Superior Thermal Management:​

The all-metal structure offers excellent thermal conductivity, rapidly dissipating heat to prevent diamond graphitization and workpiece damage (e.g., annealing, burns, or cracks). With heat resistance exceeding 600°C, these wheels maintain structural integrity during high-speed grinding.



4. Extended Service Life & Cost Reduction:​

Under identical conditions, tool life is 3–5 times longer than electroplated wheels and several times longer than resin wheels. This reduces wheel change frequency by over 25%, minimizing machine downtime and lowering consumable costs per part-ideal for mass production.



5. Safety & Versatility:​

Unlike resin wheels, brazed wheels eliminate risks of binder decomposition or coating delamination, producing fewer sparks and less dust. They are effective for grinding diverse difficult-to-machine materials, including cemented carbides, ceramics, SiC, glass, graphite, CFRPs, superalloys, and hardened steels across roughing, semi-finishing, grooving, cutting, and tool sharpening applications.



6. Comprehensive Advantages:​

Compared to conventional wheels, brazed diamond wheels offer decisive advantages in bond strength, efficiency, heat dissipation, longevity, dimensional stability, and adaptability, making them the preferred choice for heavy-load, high-speed, and precision form grinding operations.





Why Choose Brazed Diamond Grinding Wheels?

Upgrade your grinding performance with our advanced brazed diamond technology. By forming a permanent metallurgical bond, our wheels lock diamonds in place-eliminating shedding even under extreme pressure. Experience 30% faster material removal​ thanks to superior chip clearance and coolant flow. The robust metal core acts as a heat sink, protecting sensitive parts from thermal damage while lasting 3 to 5 times longer​ than standard electroplated wheels. From tough composites to hardened steel, achieve unmatched precision and safety in every cut. The ultimate solution for high-speed, heavy-duty, and high-volume production.
