how to install a diamond blade on an angle grinder

Installing a diamond blade on an angle grinder is a straightforward process, but it requires careful attention to ensure safety and proper functioning.

Here's a step-by-step guide to help you install a diamond blade on an angle grinder:

Step-by-Step Guide to Installing a Diamond Blade on an Angle Grinder

Step 1: Disconnect the Power Source

• Before starting, ensure your angle grinder is turned off and disconnected from the power source. If it's a corded grinder, unplug it from the wall outlet. If it's cordless, remove the battery.



Step 2: Secure the Grinder

• To make the process easier and safer, secure the grinder on a stable surface or clamp it to your workbench.



Step 3: Locate the Blade Lock Button

• Most angle grinders have a blade lock button located on the top of the tool's head. Press and hold this button to lock the blade in place, preventing it from spinning while you work.



Step 4: Loosen the Flange Nut

The blade is held in place by a flange nut. Use the wrench that came with your angle grinder to loosen this nut:

1. Insert the wrench into the holes on the flange nut.
2. While holding the blade lock button, turn the wrench counterclockwise to loosen the nut.



Step 5: Remove the Old Blade

• Once the flange nut is loose, carefully remove it and the old blade. Handle the old blade with care, especially if it is damaged or worn.

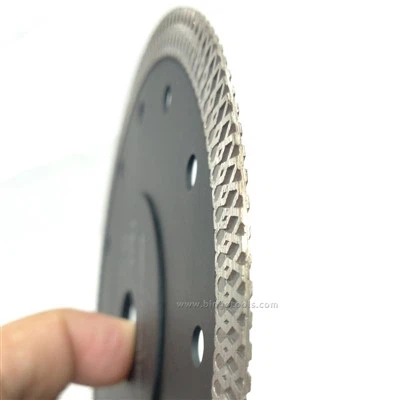

Step 6: Install the New Blade

1. Check Compatibility: Ensure the new diamond blade is the correct size and type for your angle grinder.
2. Position the Blade: Place the new blade onto the spindle, making sure it is correctly aligned. Look for the directional arrow on the blade and ensure it matches the grinder's rotation direction.
3. Secure the Blade: Place the flange over the new blade and tighten it by hand. Use the wrench to further secure the flange nut, but avoid overtightening.



Step 7: Test the Grinder

• Briefly power on the grinder to ensure the blade is installed correctly. Check for any excessive vibration or noise, which might indicate improper installation.



Safety Tips

• Wear Protective Gear: Always wear gloves, safety goggles, and ear protection when working with power tools.
• Follow Manufacturer's Instructions: Refer to your angle grinder's manual for specific instructions and safety guidelines.

By following these steps, you can safely and effectively install a diamond blade on your angle grinder. This will ensure optimal performance and safety during your cutting tasks.
