Truloc 2-seg Diamond Grinding Shoes
Truloc 2-seg Diamond Grinding shoes

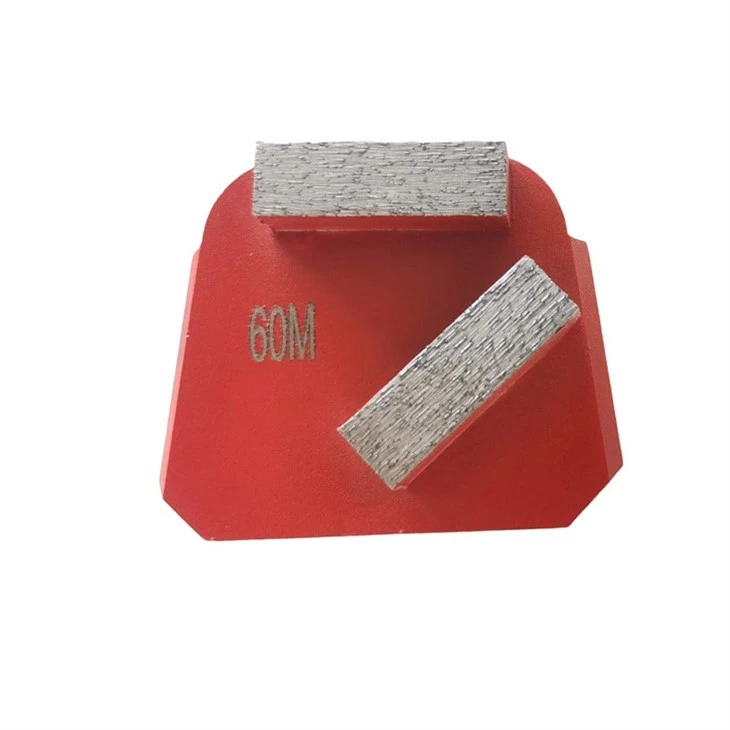

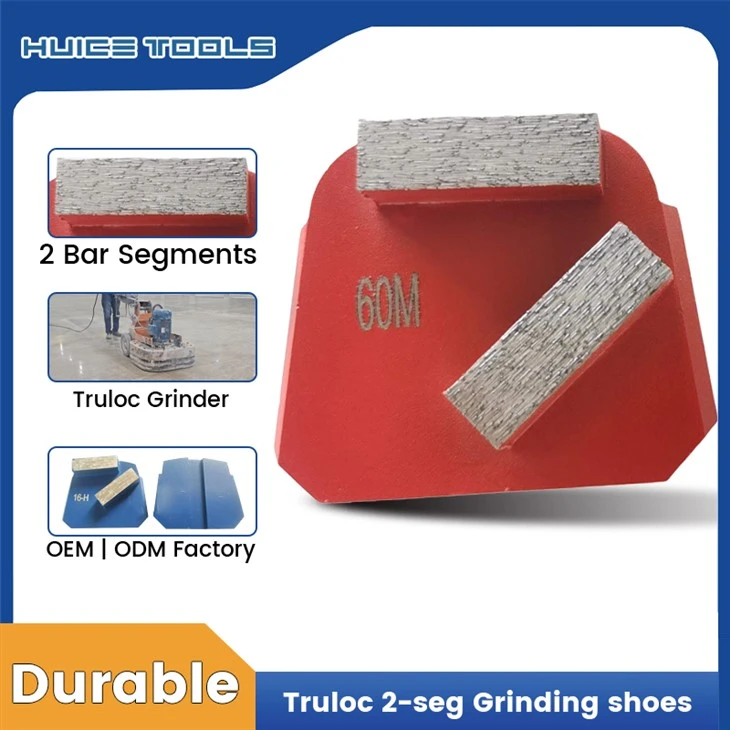

TheTruloc2-Segment Diamond Grinding Shoes uses thick, high-density segments to tackle rough concrete while minimizing tool wear. By cutting evenly into the substrate, it produces a smooth surface texture ideal for direct resin polishing.
The diamond floor grinding shoes developed and manufactured by Huice Company are characterized by high grinding efficiency, long service life, stable performance, and excellent cost-effectiveness. The company has long served as an OEM manufacturer of diamond floor grinding tools for well-known brands.
Custom segment configurations and custom shapes are available upon request to fit unique job specifications. Additionally, operators can run these tooling heads on Lavina, Edco, and OnFloor grinders simply by attaching a Quick-Change adapter.
Concrete Diamond Grinding Shoes Truloc
A Double Giant Segments Trapezoid Grinding Plates

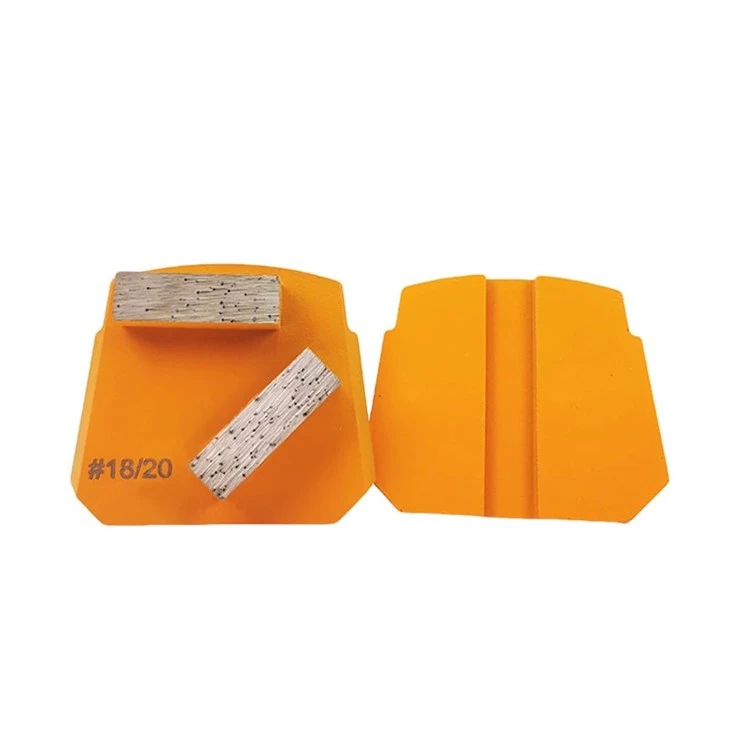

Featuring ultra-thick 12mm or 15mm diamond blocks, these trapezoid grinding plates deliver max tool longevity on heavy-duty planetary and rotary floor grinders. Designed for deep cutting and coarse concrete grinding, they resist extreme wear on demanding job sites.
A comprehensive selection of diamond grits and bond hardness levels is available to match any specific floor preparation setup.
Industrial diamond powder
The diamond segments are manufactured using industrial-grade diamond powder for consistent, dependable cutting performance.
Silver brazing
The segments are fixed to the metal base via silver brazing, giving a strong, heat-resistant bond.
High coverage, low cost
The custom segment profile covers a wide area while keeping the cost competitive for high-volume floor work.
Factory Advantages
We formulate our metal-bond tooling in multiple matrix hardnesses and diamond grit sizes to cover every phase of concrete surface prep:
Coarse Grits (#6 – #16/20): Designed for heavy stock removal and aggressive profile opening. The oversized diamond grit bites deep into raw concrete to strip off old surfaces and reveal fresh substrate. This range is also highly effective for shaving down thin topcoats, including epoxies, acrylics, and urethanes.
Medium-Coarse (#30/40): The industry standard for initial concrete leveling. It cuts away weathered top layers efficiently while leaving a consistent, balanced scratch pattern across the slab.
Medium Grits (#50 – #80): Used to refine coarse scratch marks and smooth out surface transitions before transitioning to finer steps.
Fine Grits (#100 – #150): The final metal-bond pass. These shoes clean up the profile, eliminate remaining scratches, and prepare the floor for high-grit resin polishing or thin-film sealers.
HuiceTools continuously develops new, cost-effective diamond grinding segments to serve our clients. Six things set the factory apart:
1. Factory Direct
Cost-efficient | OEM & ODM Available.
2. Professional R&D
Solid technical backing.
3. Strict QC
Advanced testing & skilled inspectors.
4. Fast Response Team
Nearly 7×24h support.
5. One-stop Service
Complete diamond tool product range.
6. Since 2006
Rich experience in diamond tools production.
Six Practical Benefits
Durable composite
Durable metal & resin composite.
Efficient grinding
Efficient for concrete grinding & polishing.
Custom options
Custom grits & sizes available.
Competitive pricing
Superior quality, competitive pricing.
Quick delivery
Elegant packaging, quick delivery.
Outstanding service
Outstanding service.
Technical Data
The dimensions column lists the available diamond grits, and the segment size column lists the two segment profiles, each with two segments.
Where It Works
This silver-brazed diamond tool is designed for floor grinders, generally supplied in sets of 6 or 9 pieces. Mounted on floor grinding equipment, it works on the surfaces below:
Epoxy & urethane
Efficiently strips tough epoxy, urethane and other surface coatings and toppings.
Rough concrete
Grinds all types of rough concrete surfaces.
Terrazzo & stone
Equipped with three threaded mounting holes, ideal for processing concrete, terrazzo and stone surfaces.
Coarse to fine
A wide selection of diamond grits covers tasks from coarse grinding through to fine finishing.
Match The Bond To The Concrete
These Airtec diamond grinding plates come with bond options ranging from extra soft to extra hard. Read the table from the floor, not from the tool - the bond is matched to the concrete strength grade so the plate keeps cutting instead of polishing over.
| EXTRA SOFT BOND | SOFT BOND | MEDIUM BOND | HARD BOND | EXTRA HARD BOND | |
| BOND HARDNESS | Very Soft | Soft | Medium | Hard | Very Hard |
| BEST FOR CONCRETE | Very Hard / Dense Concrete | Hard Concrete | Medium Concrete | Soft Concrete / Abrasive | Very Soft / Abrasive Concrete |
| PSI | 5000-9000 | 4000-5000 | 3000-4000 | 1500-3500 | 1000-2000 |
| MPA | C50-C65 | C30-C50 | C20-C40 | C15-C25 | C10-C20 |
| AGGRESSIVENESS | Very Aggressive | Aggressive | Balanced | Low Aggression | Very Low Aggression |
| TOOL LIFE | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ | ★★★★★ |
| HEAT GENERATION | High | High / Medium | Medium | Low / Medium | Low |
HuiceTools Friendly Reminder: Selecting the correct bond hardness elevates performance, extends grinding tool lifespan and maximizes working efficiency. Please contact customer service for free access to detailed information. We can solve any difficult and complicated problems related to floor grinding , polishing and renovation.
Coarse Versus Fine Grit
The dimensions range from Grit #16 to #200. A coarse grit removes material quickly, while a fine grit produces a smoother finish. Choose the grit by the stage of the job.
|
16# COARSE
|
VS |
200# FINE
|
Questions We Get Asked
What are Truloc diamond grinding shoes?
Truloc diamond grinding shoes are floor prep diamond segments built around the Truloc quick-lock mounting system, designed for fast swap-out on concrete grinders for grinding, leveling and coating removal. Huicetools manufactures compatible Truloc-style replacement grinding shoes with in-house developed bond formulas for concrete and terrazzo projects.
What grinders are Truloc grinding shoes compatible with?
Truloc tooling is originally made for grinders equipped with the Truloc quick-change holder system. Without adapters, they will not fit other standard base plates. Huicetools can supply matching adapters so our Truloc grinding segments work on many mainstream floor grinder models.
What grit Truloc diamond shoes for concrete rough grinding?
30# and 40# grit are the standard selection for aggressive rough grinding and concrete leveling. Step up to 60# grit for finer surface preparation after rough cutting. Huicetools keeps all popular grit sizes of Truloc grinding shoes in stock for quick shipment.
Can you run Truloc grinding shoes wet and dry?
Turn off and lock out power to the grinder first. Release the Truloc quick-lock latch, take out the old segment, align the new Truloc shoe into the holder, then lock the latch firmly. Give it a light tug to confirm it will not come loose before grinding. Huicetools provides installation tips for all our Truloc tooling.
How to install and change Truloc grinding shoes?
Service life depends on concrete hardness, grinding pressure and operation speed. Normally they last between 800–2500 sq ft per set. Hard concrete and heavy coating removal will shorten lifespan. Huicetools optimizes diamond concentration and matrix to deliver longer working life at competitive cost.
Can Truloc diamond grinding shoes grind terrazzo?
Yes. Medium-hard bond Truloc diamond shoes work well for terrazzo grinding and honing. Using the correct grit sequence helps expose aggregate evenly without chipping. Huicetools offers terrazzo-tailored Truloc grinding segments for terrazzo restoration jobs.
What is the price of Truloc replacement grinding shoes?
Cost depends on grit, bond type, metal bond or PCD construction and order volume. Factory-direct compatible Truloc replacements are normally more cost-effective than original branded parts. As a manufacturer with independent R&D, Huicetools offers factory pricing and bulk discounts for floor tool distributors.
Why do Truloc grinding shoes glaze over quickly?
Glazing mostly occurs when you use an overly hard bond on hard concrete. The matrix cannot wear down, leaving diamond grains polished and dull. Switch to a softer bond shoe, lower grinding pressure or switch to wet grinding. Huicetools' technical team can help you pick the right bond to fix glazing issues.
Send us your floor and your machine
Tell us the floor, what is on top of it and the grinder you run. We reply with the plate specification, the bond we recommend and a sample plan.
