Arix Ordered Diamond · Laser Welded
Diamond Ring Blade Annular Gear with Arix Segments

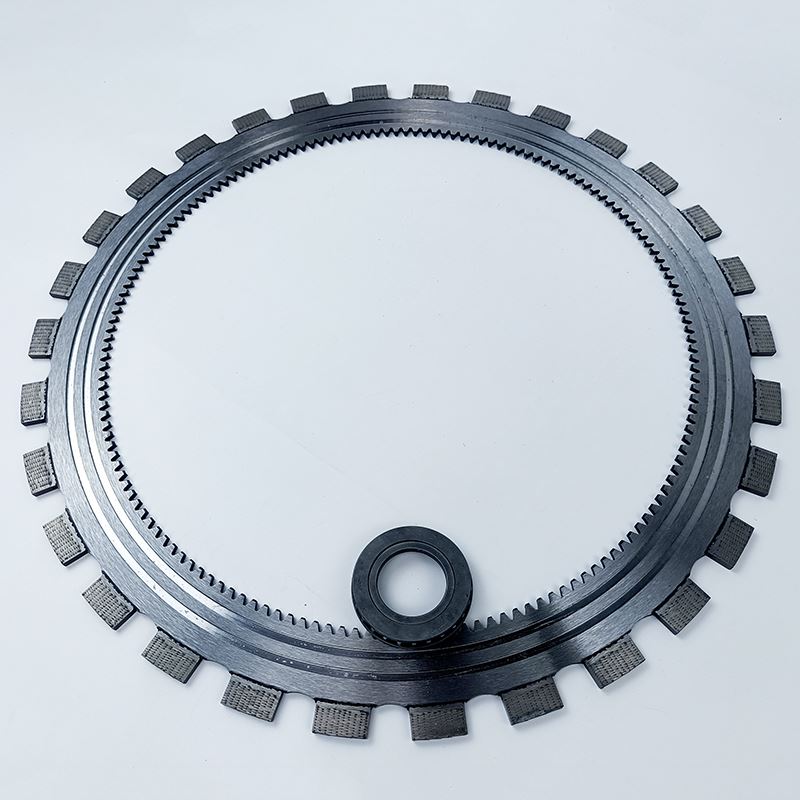

A 14 inch diamond ring saw blade built as an annular gear for internal-tooth ring saw cutting machines. Segments are laser welded, and the diamonds inside them are placed by an Arix ordered arrangement rather than mixed at random.
410mm / 14 inchArix Diamond Segment30pcs segments
Arix diamond ring saw blade
Ordered Diamond Arrangement
Ordered Diamond Layout, Not A Random Mix
A conventional segment is stirred, not laid out. Diamonds of mixed size and shape are blended into the metal powder and pressed, so nobody can say what sits behind the cutting edge at any point on the rim. That randomness is what makes a blade bite hard for a while, slow down as a soft patch opens, and glaze where the crystals are packed too tightly.
This blade uses a process the data sheet records as Adopting diamond ordered arrangement technology. Every diamond is set to a controlled spacing inside the bond, so each millimetre of the cutting face carries an even diamond density with an even amount of supporting metal behind it.
Even wear across the whole segment
With the diamonds evenly distributed, the working face wears back at a consistent rate instead of concentrating load on a few points.
Quick cutting, held to the end
Cutting speed stays the same through the life of the segment. Even spacing means quick cutting on every pass, because the diamond density does not drift as the blade wears down.
Sharp and durable at the same time
Even spacing keeps fresh crystal presenting itself, so the blade stays sharp and durable rather than polishing over into a slow cut.
Welding Method
Laser Welding: A Metallurgical Joint
The Excel sheet specifies laser welding as the joining method. A focused laser melts the segment and the steel core into each other, so the segment is fused to the body rather than pressed against it or held with solder.
The segment stays on the blade
A fusion weld resists the pull-off and shock loading that a ring saw puts on every segment as it passes through rebar and hard aggregate.
Built for heat and continuous cutting
On a ring saw the segment runs hot and runs continuously. A welded joint is what lets the blade keep cutting without the segment working loose.
Why it suits this class of machine
Because the segment is welded, the blade is specified for latest generation internal-tooth ring saw cutting machines where the load on each segment stays high through the whole cut.
Internal-Tooth Structure
Designed For Internal-Tooth Ring Saws
This blade is shaped as an annulus with teeth cut on its inside edge, because that is how the latest generation ring saw cutting machine drives it. The segment count, blade width and inner profile are all set against that class of machine.

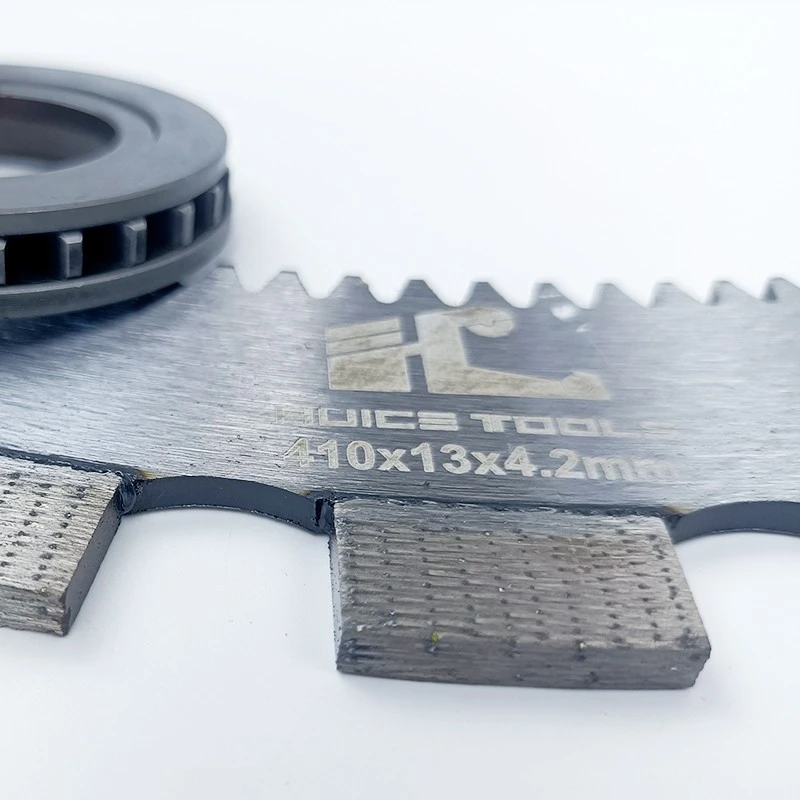

Internal teeth mesh with the drive
The teeth on the inner edge of the ring engage the machine drive, so the blade is driven by positive engagement rather than held against a friction wheel.
It fits the latest generation machines
The blade is specified for the new generation with an internal teeth structure, including machines such as the JF7410 and equivalent models.
Replace the blade and go
Because the drive is taken through the inner teeth, the blade locates on the machine and cuts without a separate re-setting step between blades.

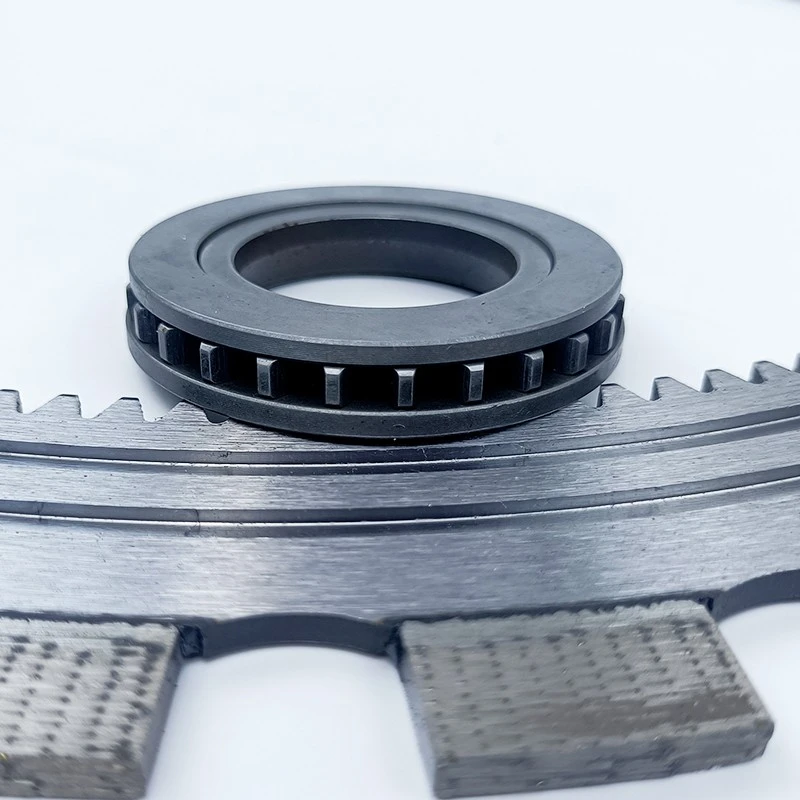

Internal gear teethThe inner edge carries the teeth that mesh with the machine drive.
Ring blade profileA continuous ring, so the cut can be deeper than half the blade diameter.

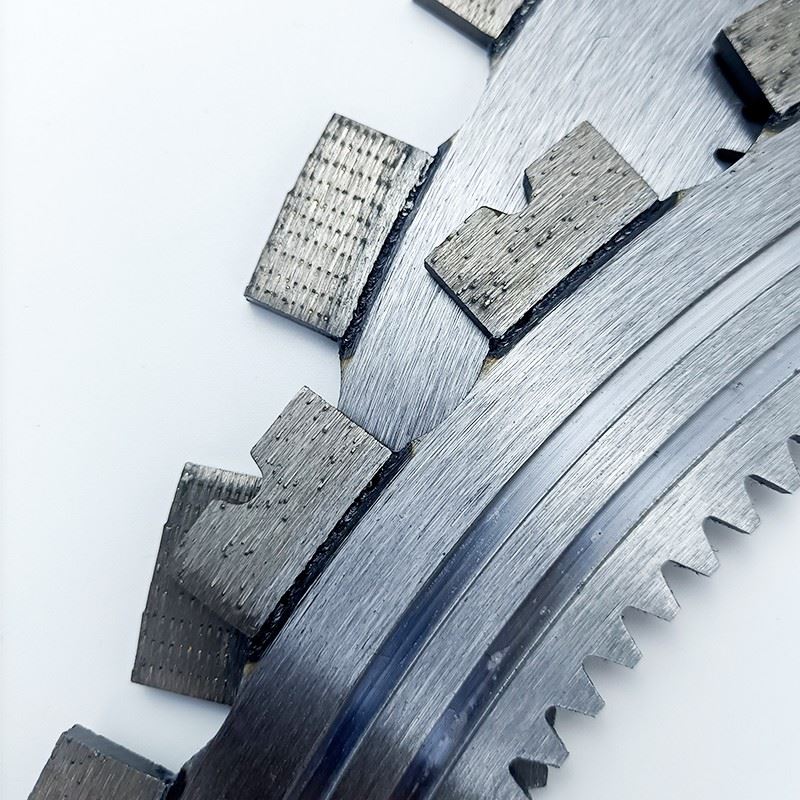

Laser welded jointLaser welding fuses each segment to the steel ring body.
Specification
Technical Data
ProductDiamond ring blade annular gear with Arix segments
Other nameArix diamond ring saw blade with inner gear
Keyword14 inch diamond ring saw blade
ClassificationConcrete diamond tools
Diameter410mm / 14inch
SegmentArix Diamond Segment
Segment size32*4.2*12mm*30pcs
Welding methodLaser welding
MachineSuitable for JF7410 and other latest generation ring saw cutting machines with internal teeth structure
LogoLaser marking, UV marking, silk screen marking
MOQ2pcs
PackingSingle piece packaging in cardboard boxes; 5 boxes of corrugated cardboard packaging
Manufacturing
Made In Our Own Factory
Huice Tools has manufactured diamond tools in Quanzhou since 2006. This ring blade is produced on our own line - the segment is made, welded to the ring and checked before it is packed, which is what lets us hold a specification across repeat orders.
Segment productionSegments are produced in-house, with the Arix diamond layout controlled at the press.
Welding and inspectionLaser welding and the joint check happen on the same floor, before the blade is packed.
Packing and dispatchSingle piece cardboard boxes, five boxes to a corrugated carton for shipping.
Machine Fit
Matching The Blade To The Machine
An internal-tooth ring saw needs a blade whose inner teeth match the machine drive. This blade is specified against the JF7410 and other latest generation ring saw cutting machines built with an internal teeth structure - check your machine against that specification before ordering, and tell us the model if you are unsure.
Suitable machines
JF7410 and other latest generation ring saw cutting machines with an internal teeth structure.
What to send us
The machine model, the material you are cutting, and the blade diameter you need. We confirm the inner profile before shipping.
OEM & Marking
Marking And Private Label
Three marking methods are offered on this blade: laser marking, UV marking and silk screen marking. Send us the artwork and we apply your mark to the blade.
Marking options
Laser marking for a permanent engraved mark, UV marking for full colour, and silk screen marking for volume runs.
Packing
Single piece packaging in cardboard boxes, five boxes to a corrugated cardboard outer.
Order quantity
MOQ is 2pcs. Sample orders are welcome so you can trial the blade on your own machine.
Working Together
From Enquiry To Delivery
01
Machine and material
Send the machine model and what you are cutting.
02
Blade match
We confirm the diameter, inner profile and segment against your machine.
03
Sample and marking
A sample blade is made, then marking and packing are signed off.
04
Production and dispatch
The batch is welded and checked in-house, then packed and shipped.
Questions
Frequently Asked Questions
What does the ordered diamond arrangement actually change?
It replaces a random diamond mix with a laid-out pattern. Because every millimetre of the cutting face then carries an even diamond density with even support behind it, cutting speed stays steady through the life of the segment and the blade keeps sharpening itself instead of glazing.
Why is the blade laser welded rather than sintered or brazed?
Laser welding fuses the segment and the steel ring into each other, producing a metallurgical joint. On a ring saw, where each segment passes through the cut under continuous load and heat, that joint is what keeps the segment on the blade.
What is an internal teeth structure?
It describes how the machine drives the blade. The ring blade carries teeth on its inner edge, and those teeth mesh with the drive on the machine body, so the blade is driven by engagement rather than being held against a friction wheel.
Which machines does this blade fit?
It is suitable for the JF7410 and other latest generation ring saw cutting machines that use an internal teeth structure. Send us your machine model and we will confirm the match.
What is the blade size and segment count?
410mm (14 inch) diameter, with Arix diamond segments at 32*4.2*12mm, 30pcs around the ring.
Can you mark the blade with our brand?
Yes. Laser marking, UV marking and silk screen marking are all available. Send us the artwork.
What is the minimum order quantity?
2pcs. Sample orders are welcome so you can test the blade on your own machine first.
How is the blade packed?
Single piece packaging in cardboard boxes, with five boxes to a corrugated cardboard outer.
Cutting deep with an internal-tooth ring saw?
Send us your machine model and the material you are cutting. We will confirm the blade diameter, inner profile and segment count, and arrange a sample.
